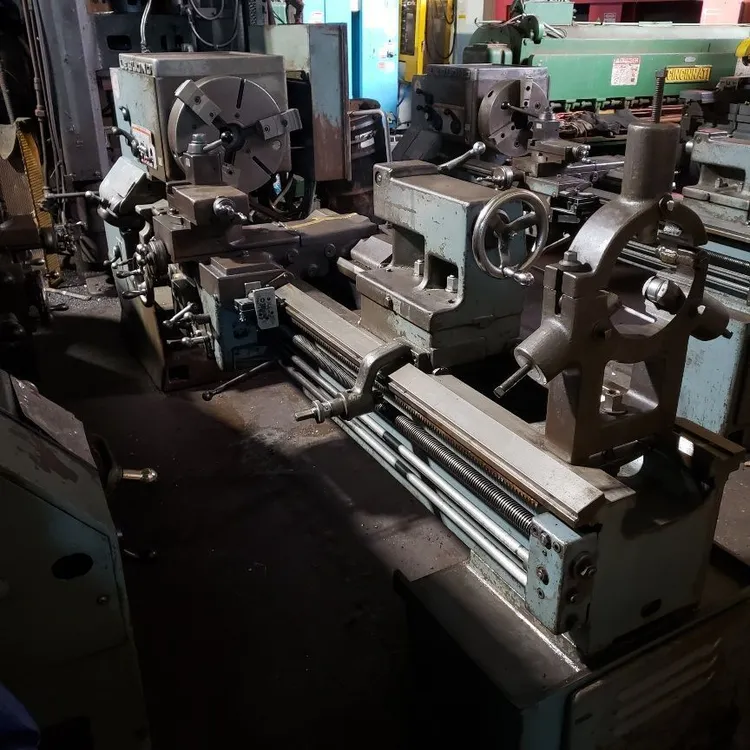

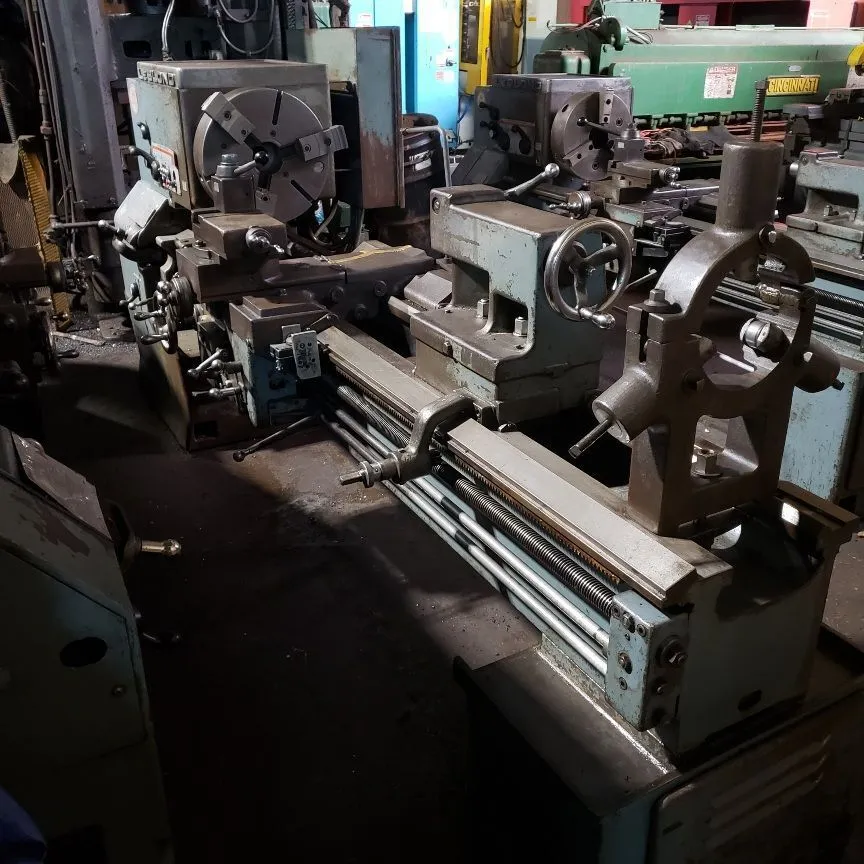

LEBLOND REGAL 24" X 72" LATHE

Description

Swing Over Bed & Carriage Ways 26", Swing Over Cross Slide 18 1/4", Distance Between Centers 72", Size of Hole Thru Spindle 2 1/8", Size of Tool Holder 1 1/16" x 1 1/2", Spindle Speeds 12, Spindle, Speed Range 16 -1200 RPM, Carriage Length on Bed 26", Bridge Width 9", Cross Slide Travel 14 1/4", Compound Rest Travel 4 3/4", Feed Changes 48, Feed Range .0036 IPR - .205 IPR, Thread Changes 48, Threads 2 - 112 TPI, Leadscrew Diameter 1 7/18, Tailstock Spindle Diameter 3 1/8", Center Morse Taper 5, Motor 30 HP. 1800 RPM, Weight 8,250 lbs., Aloris Tool Post And Holders Included. Located in Detroit, MI
