Okuma Howa ACT-35 CNC LATHE

Description

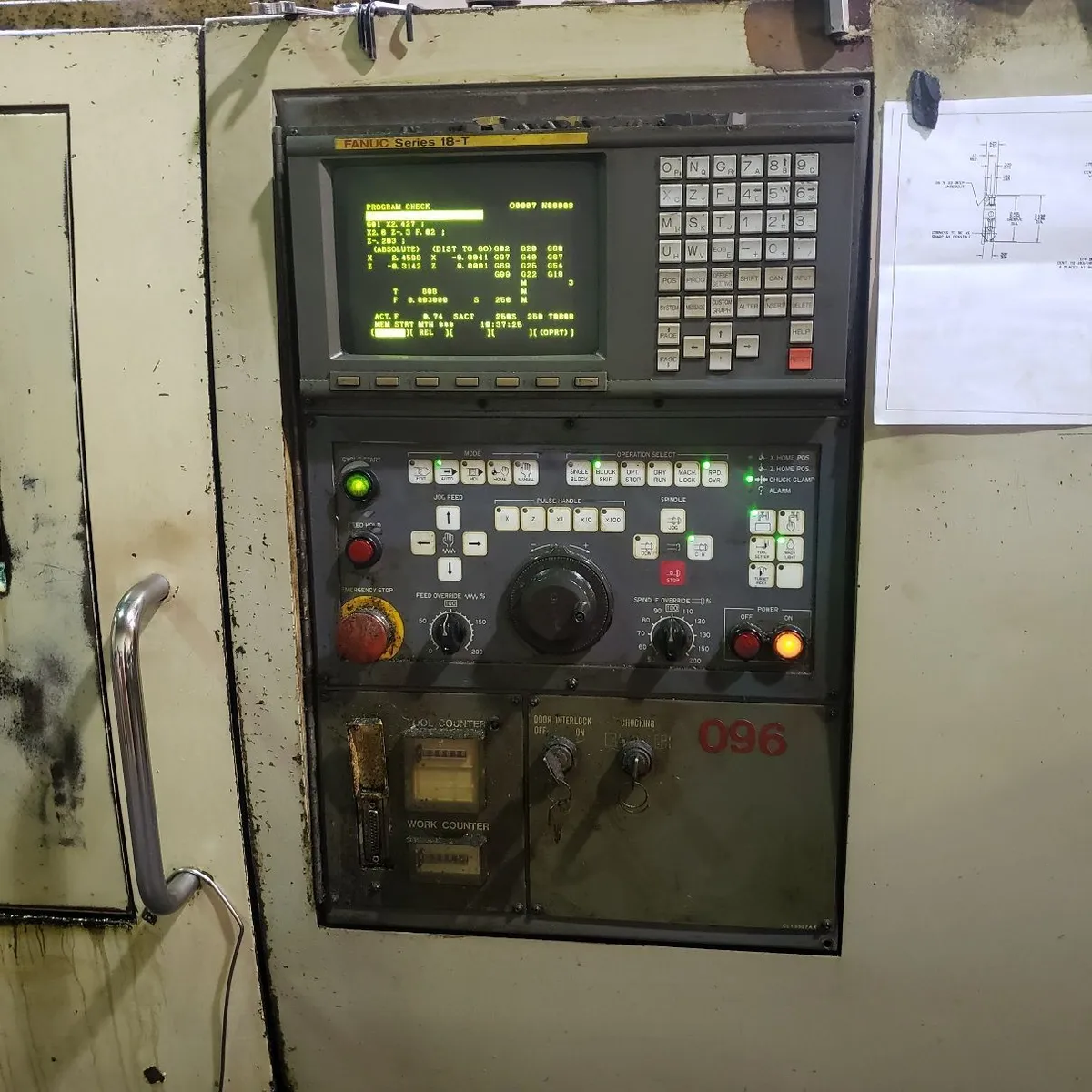

Max Turning Diameter: 13.77", Max Turning Length: 24.02", Distance Between Centers: 24.29", Max Bar Capacity: 3.07", Swing Over Bed: 19.68", Swing Over Cross Slide: 15.75", X Axis Travel: 7.87", Z Axis Travel: 24.01", Rapid Traverse X Axis: 944 IPM, Rapid Traverse Z Axis:n1180 IPM, Spindle Nose: A2-8, Spindle Bore: 3.62", Spindle Speed: 35 - 3500 RPM, Spindle Motor: 25HP, Turret Capacity: 12 Stations, Turret Index Time: 0.18 Second, Tailstock Taper: MT-5, Tailstock Quill Dia.: 3.54", Tailstock Quill Travel: 4.72", Fanuc 18T Control, 10" Chuck. Located in Detroit, MI
