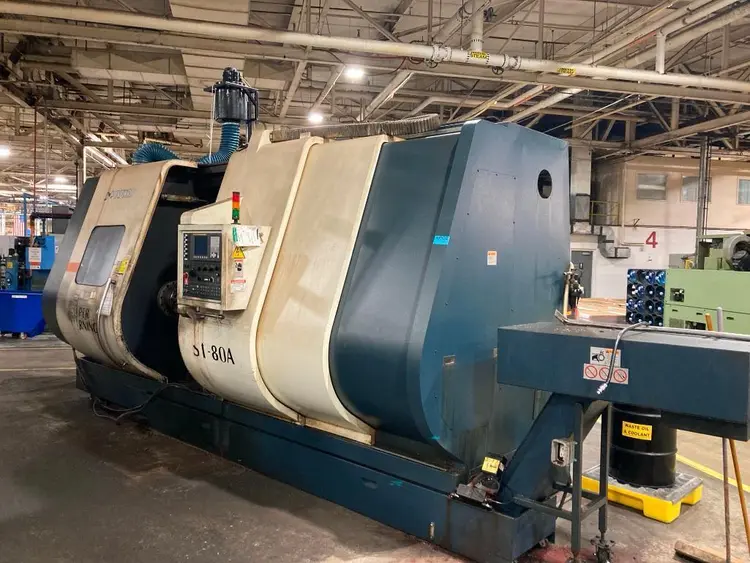

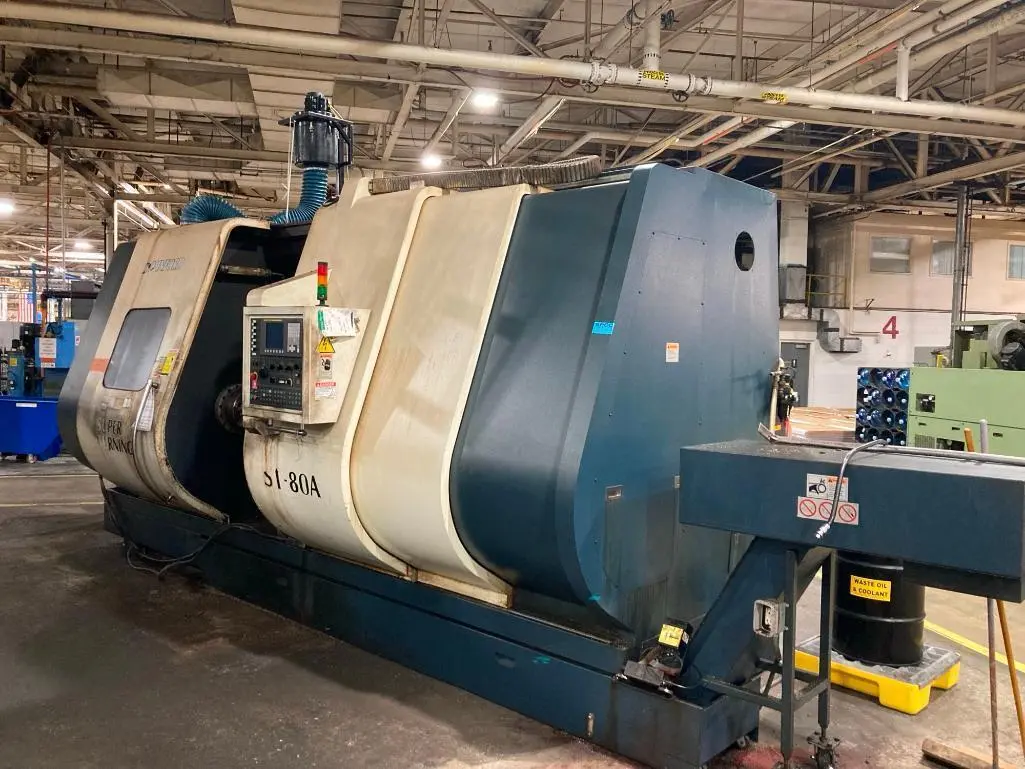

Standard turning diameter 27.5", Swing over carriage 27.5", Maximum cross travel (X axis) 15.7", Maximum longitudinal travel (Z axis) 78.7", Distance between centers 88.5", Spindle: Spindle Motor 35 HP, Spindle nose A2-11, Spindle RPM 0-3000 (12" Chuck) Hole through spindle 4.5", Bar Capacity 4.1", Spindle bearing diameter 6.3", Spindle inside taper M.T. 7, Hydraulic chuck 12" 3-Jaw, Turret: Turret tool positions 12, Tailstock: Quill diameter of tailstock 7.87", Quill stroke of tailstock 5.9", Quill taper of tailstock M.T. 7, Tailstock body travel 66.9", VDI tool shank type 60mm 12", Hydraulic chuck, Fanuc Oitc control.
