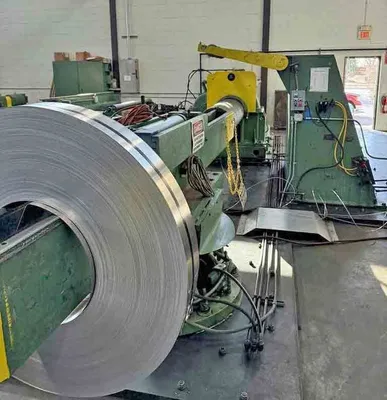

54" x 6.50" x 20,000# Stamco Slitting Line

Description

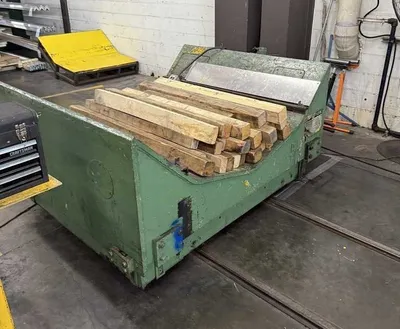

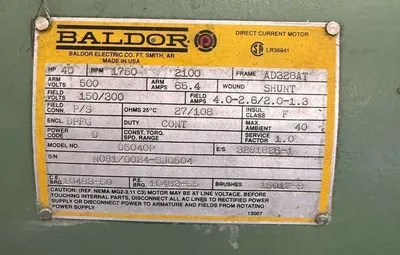

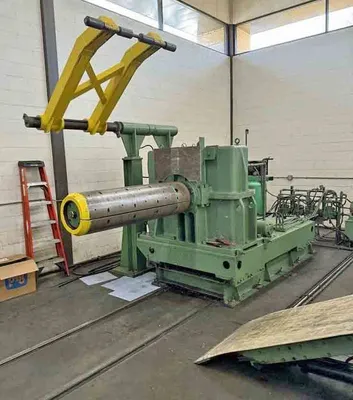

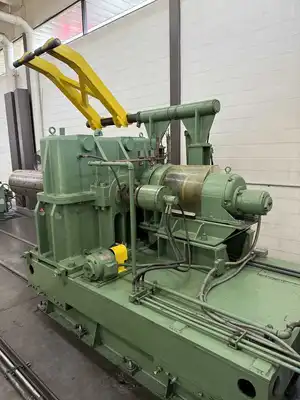

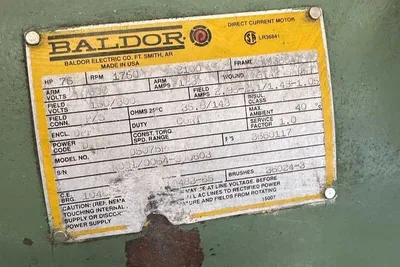

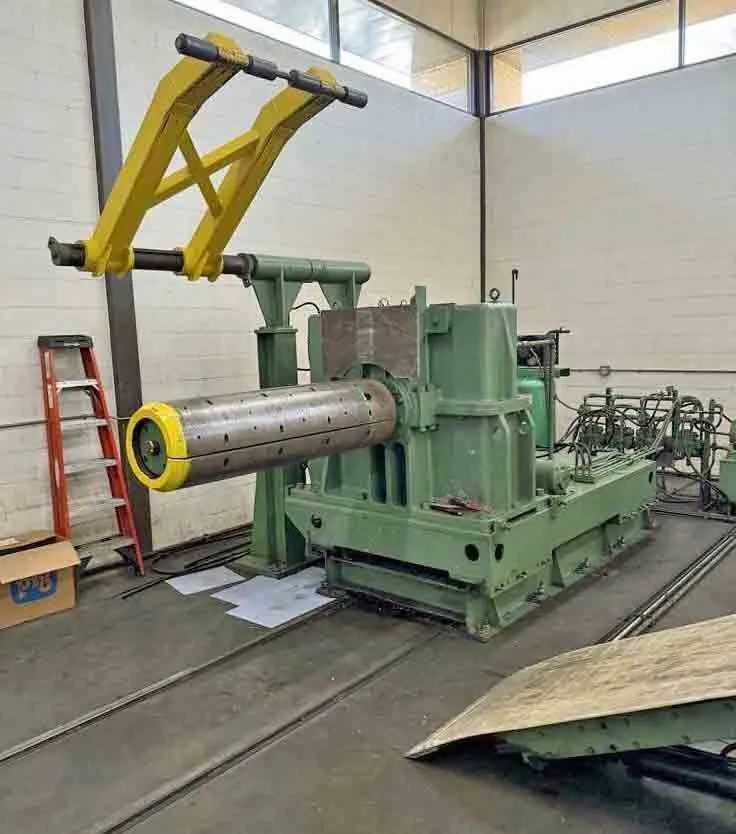

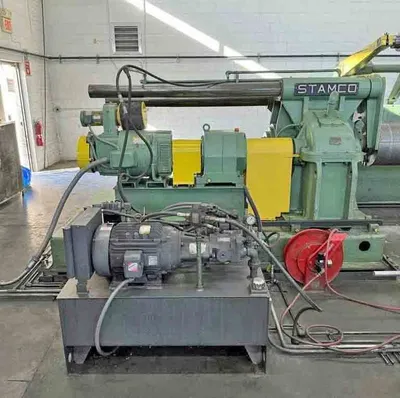

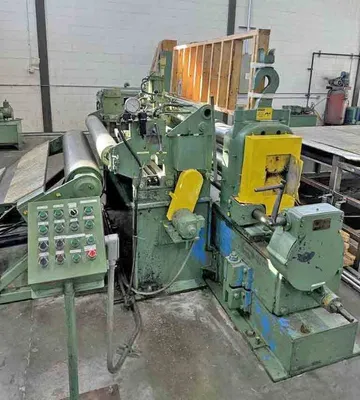

54" wide slitting line, 20,000 lb. weight capacity, entry coil I.D. 16"–20", exit coil I.D. 20", 72" maximum coil O.D., line direction left to right, constant line speed 250–300 FPM, consisting of: Paxson Entry Coil Car with hydraulic motorized screw jack lift, hydraulic motorized travel, removable riser for small coil O.D.'s, self-contained hydraulic power unit, hand pendant control, Mandrel Uncoiler with 56" face mandrel, hydraulic expansion, slide base, (2) Fawick water-cooled brakes, 1.5 HP AC gearmotor feed-up drive, 220/440V, Stamco integral reducer with 5.4:1 ratio, lube pump, 52" passline from floor to center of mandrel, shipping weight 17,500 lbs., Free-Standing Overarm Hold-Down Roll, Entry Hydraulic Power Unit with 20 HP Baldor AC motor, 1,760 RPM, 230/460V, 60-gallon tank, valve stand, Peeler Table with hydraulic lift and extend, 60" wide passline roll, Slitter Entry Unit with entry passline roll, adjustable roller side guides, driven pinch rolls, (1) Removable Head Slitter with 6.50" diameter x 60" face arbors, eccentric arbor adjustment, 40 HP Baldor DC motor, 1,750/2,100 RPM, 500V, Stamco reducer/pinion box with 3.2:1 ratio, Hansen secondary reducer with 8.3:1 ratio, slitter tooling, Drag Board Tension Stand with entry separator tooling bar, exit passline roll, (3) air-cylinder tension controls, Recoiler with 20" diameter x 60" face drum, manual clamp and expansion, hydraulic pushoff, 75 HP Baldor DC motor, 1,750/2,100 RPM, 500V with blower, Stamco integral reducer with 3.697:1 ratio, Hansen secondary reducer with 10:1 ratio, shipping weight 17,000 lbs., Free-Standing Overarm Separator, Paper Unwinder, Scrap Winder with hydraulic motor drive, level wind, manual ball removal, Exit Hydraulic Power Unit, 2-Arm Exit Turnstile with C-hook type arms, 6.5" wide x 12" high slot in each arm, 67" long arms, 18" minimum I.D., 47" from floor to top of arm, hydraulic pushoff, powered rotation, overall size 184" L x 48" W x 54" H, shipping weight 11,000 lbs., Operator Controls, removed and in storage in Toledo, OH.
