48" x 4.75" x 10,000# Braner Slitting Line

Description

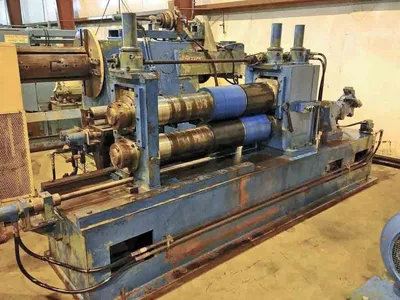

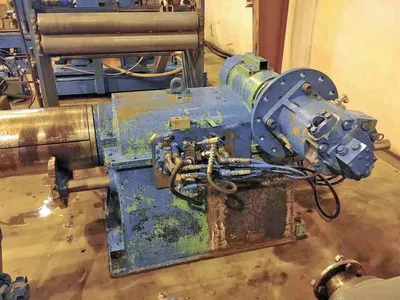

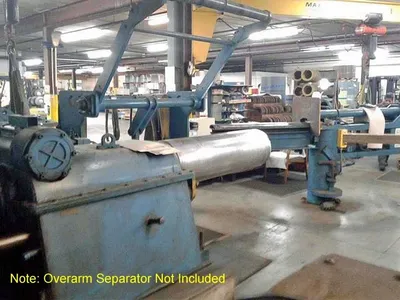

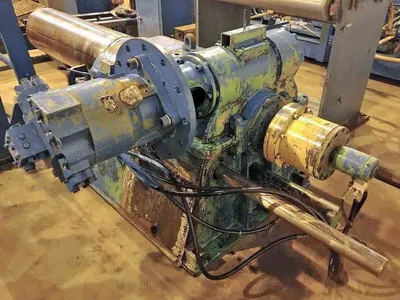

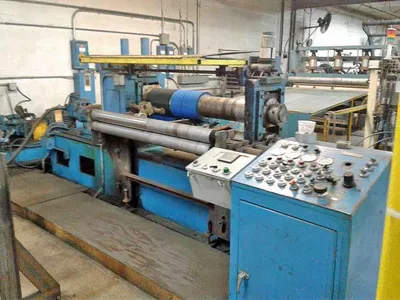

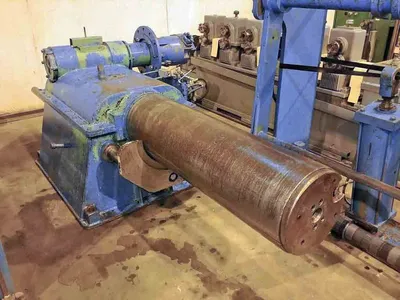

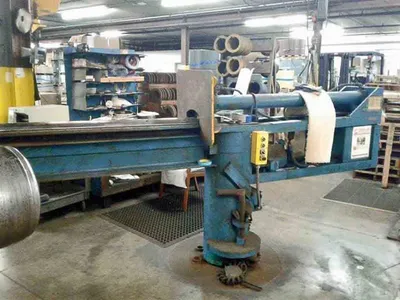

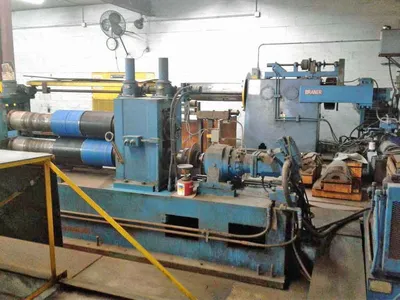

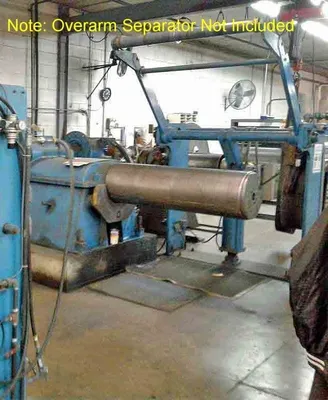

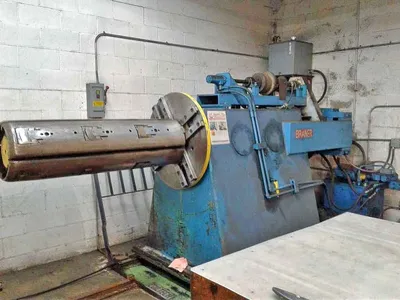

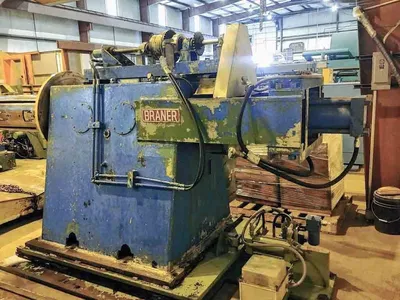

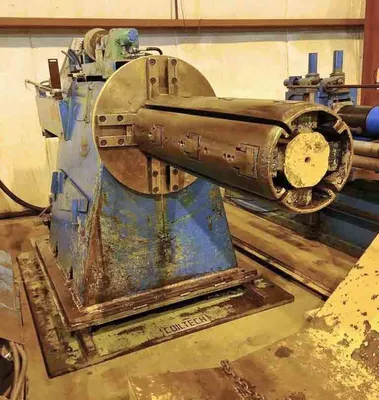

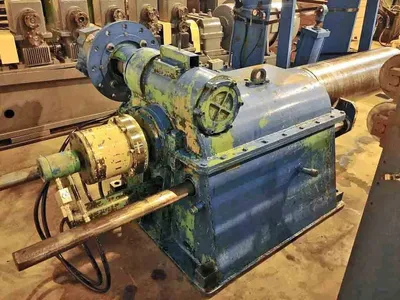

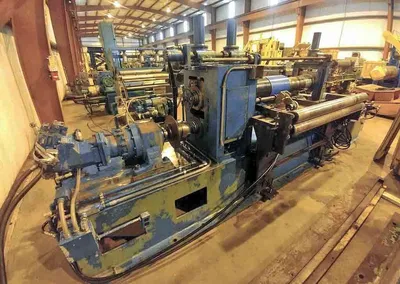

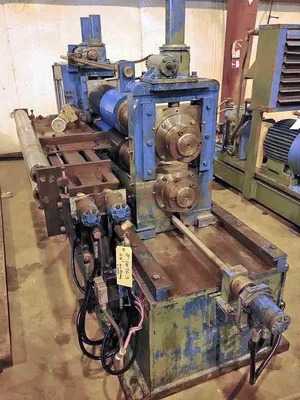

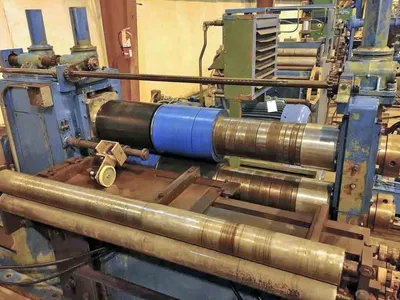

1965 Braner Slitting Line, 48" wide, 10,000 lb. capacity, line direction left to right, consisting of: Braner Mandrel Uncoiler with (4)-segment mandrel, 51" face mandrel, hydraulic expansion range 15"–20.5", coil I.D. range 16"–20", sliding base, hydraulic motor feed-up with air clutch, Fawick air brake, 51.5" passline from floor to center of mandrel, base plate 67" L-R x 78" F-B, overall size 161" L x 68" W x 78" H, Slitter Head (new in 1985) with 4.75" diameter x 50" face arbors, outboard slides in to 24" wide, entry passline rolls 4" diameter x 56" face, entry side guides, hydraulic motor adjustment, parallel arbor adjustment, outboard support moves in to approximately 26" for heavier gauge slitting, hydraulic motor driven, 38" passline, overall size 157" L x 48" W x 69" H, (2) Scrap Winders, air motor driven, manual scrap ball removal, less oscillating wind assembly, Recoiler with 16" diameter x 52" face drum, hydraulic grip and expand (gripper bar missing), hydraulic pushoff, Sundstrand Sauer Danfoss hydraulic drive motor, Model 27-3052, S/N 01-HSF-851443, reducer with 12.5:1 ratio, less overarm separator, 26" passline from floor to center of drum, overall size 134" L x 68" W x 48" H, One-Arm Turnstile with manual rotation, hydraulic pushoff, self-contained hydraulics, Main Operator's Control Panel, Main Hydraulic Unit #1 for slitter head drive, Main Hydraulic Unit #2 for recoiler drive with cooler, overall size 96" L x 32" W x 66" H, (2) Additional Hydraulic Units, Slitter Tooling, video of line running available, removed and in storage in Toledo, OH.
