36" x 4.00" x 30,000# Paxson Slitting Line

Description

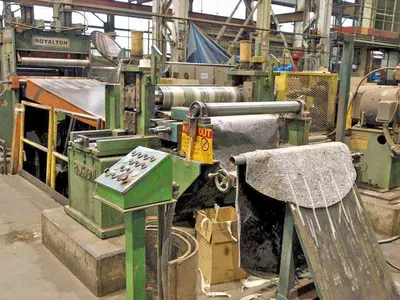

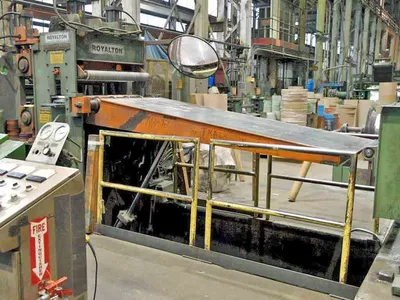

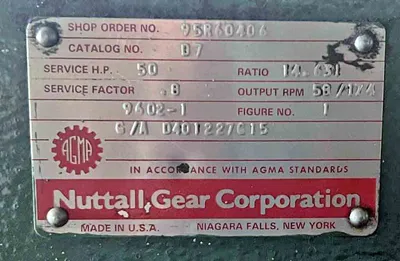

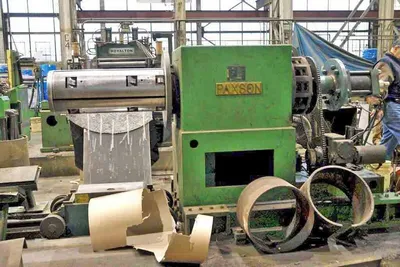

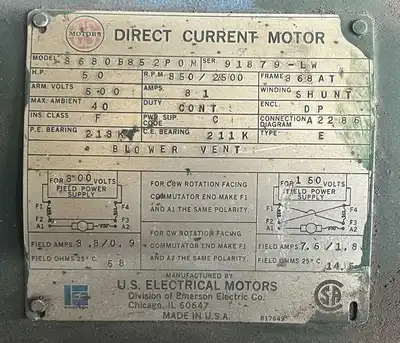

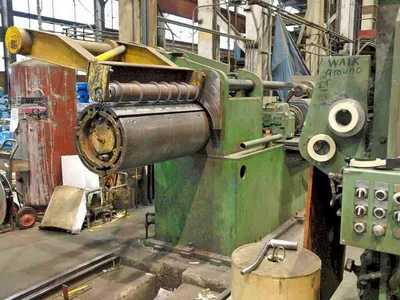

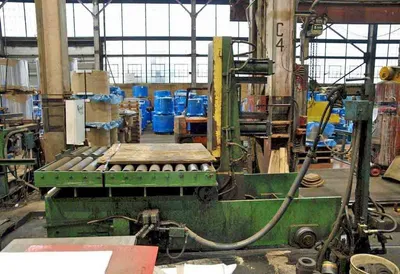

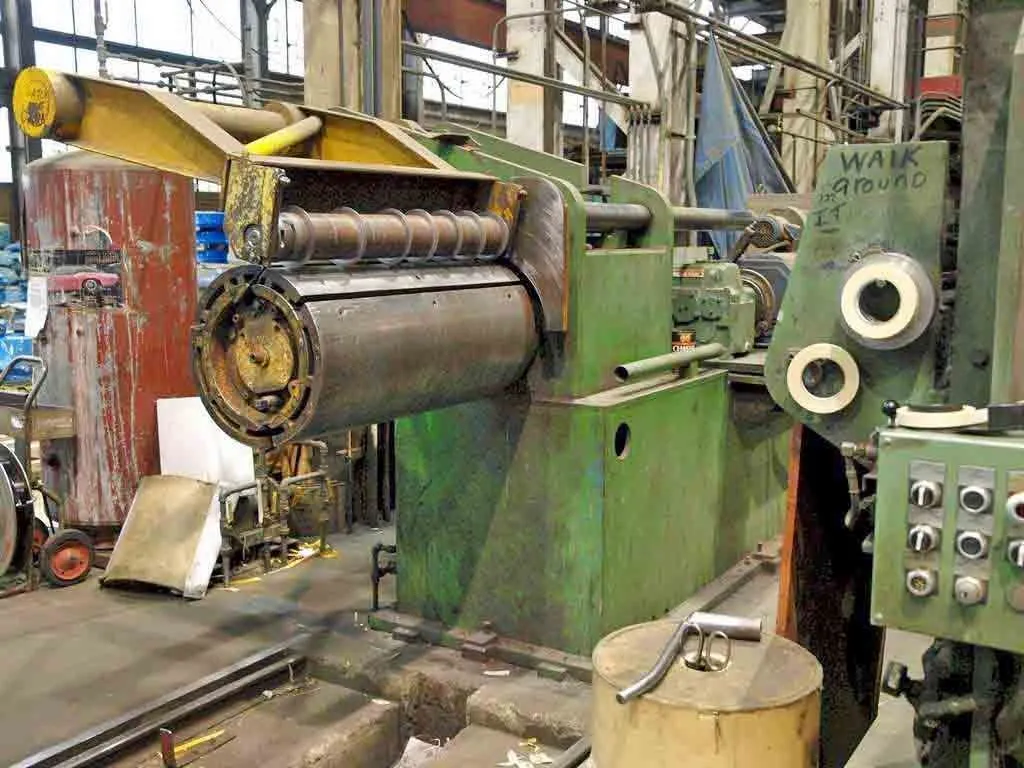

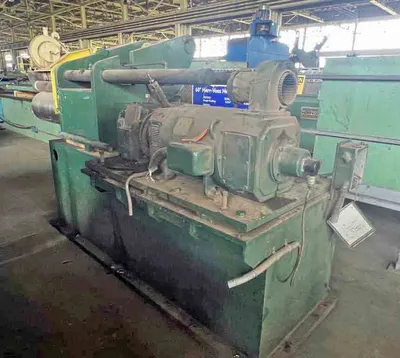

36" Paxson Driven Loop Slitting Line, designed for CR, galvanized, tin plate, silicone, and stainless steel, 30,000 lb. weight capacity, 36" width capacity, material thickness range 0.006" to 0.095", coil I.D. 16" to 20", coil O.D. 72" entry and 70" exit, line speed 600 to 1,200 FPM, line direction right to left, consisting of: Entry Coil Car, pit type with self-contained hydraulics, Uncoiler with hydraulic expansion, 16"–20" coil I.D. range, sliding base, Wichita brake, AC motor threading drive, Photoelectric Edge Detector, Peeler Table with entry passline rolls and entry side guides, (2) Paxson Slitter Heads (crane-removal type), 4.00" diameter x 38" face arbors, parallel arbor adjustment, 50 HP DC motor drive, 1,150–2,300 RPM with blower, right-angle reducer/pinion stand with 3.625:1 ratio, Paxson Scrap Winder with hydraulic motor drive, push-button scrap ball dump, hydraulic level wind, 24" wide x 30" diameter scrap ball capacity, Pit Cross Over Table, Royalton Tension Stand, combination roll and pad type, pad unit with hydraulic cylinder raise and lower, air bag tension on the bottom, 16" diameter x 40" face urethane tension rolls, dual air brakes, drive shafts to the rolls, entry separator tooling bar, exit feed-up table, exit steel passline rolls with 42" face, Recoiler with 16" diameter drum and pads for 20" diameter coils, manual clamp and expansion, 70" maximum O.D. capacity, hydraulic pushoff, overarm separator, 50 HP DC motor, 850–2,500 RPM, 500V with blower, holding brake, Nuttall gear reducer with 14.6:1 ratio, Exit Coil Car/Upender with hydraulic tipping cylinder, 51" long "V" cradle, twin hydraulic cylinders with 16" lift, 60" wide x 66" long conveyor rolls on the flat side, 5" slot down the middle of the conveyor rolls, hydraulic motor-driven traversing, Operator Control Panels, Parker DC Integrator Drives, removed and in storage in Toledo, OH.
