32" x 5.00" x 10,000# Stamco Slitting Line

Description

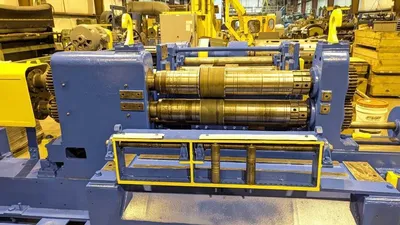

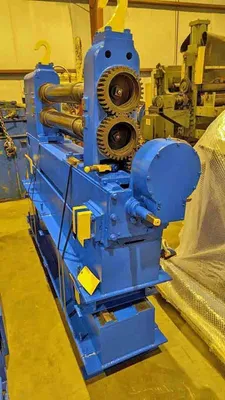

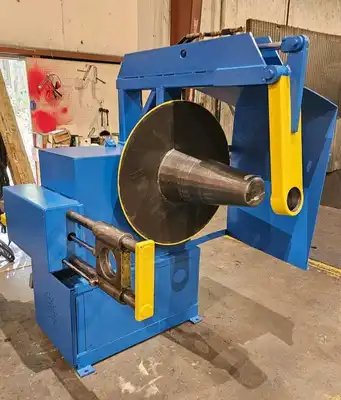

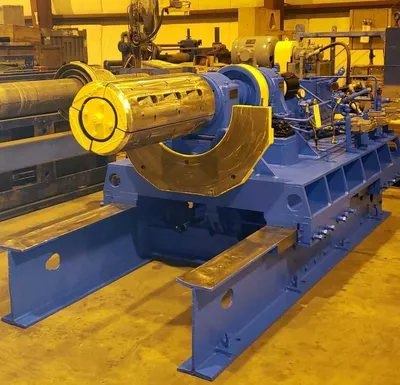

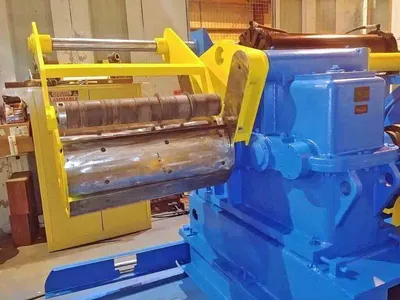

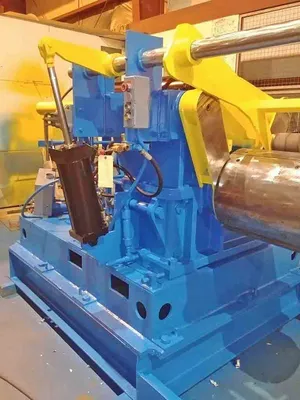

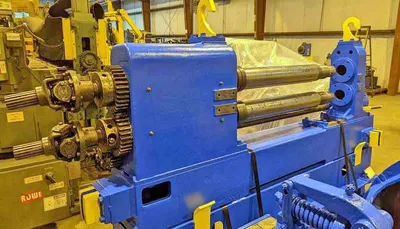

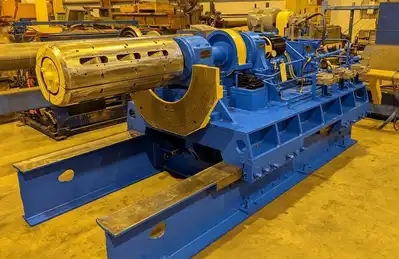

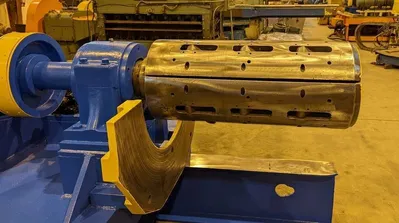

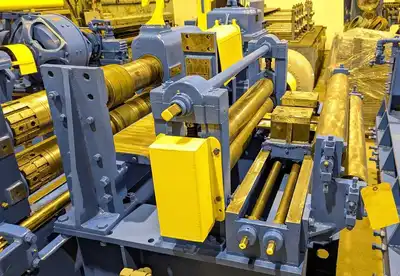

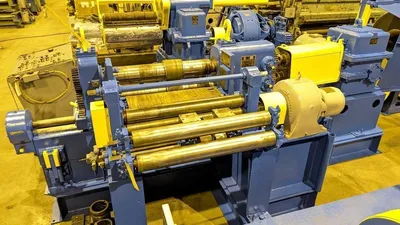

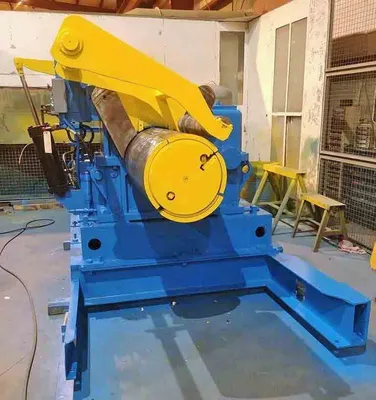

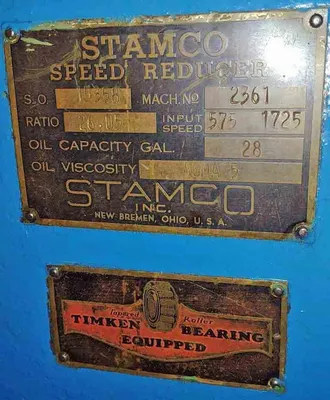

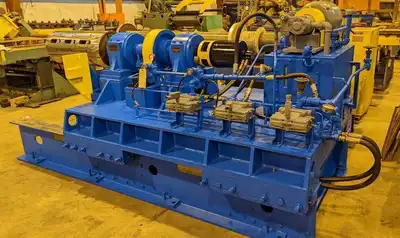

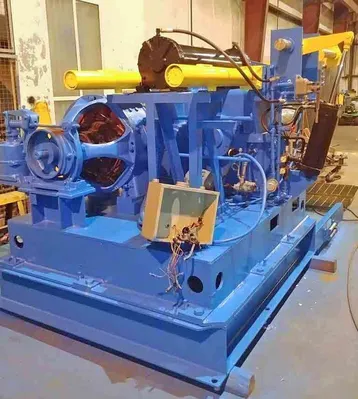

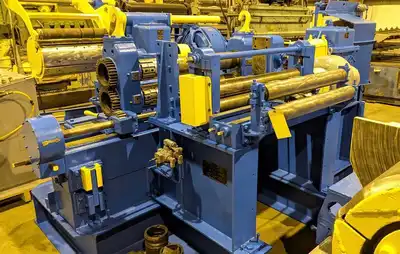

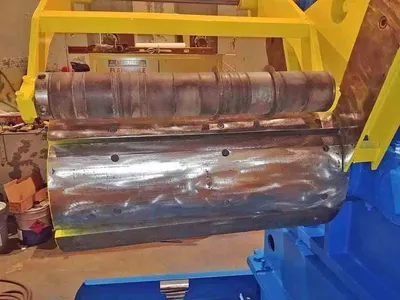

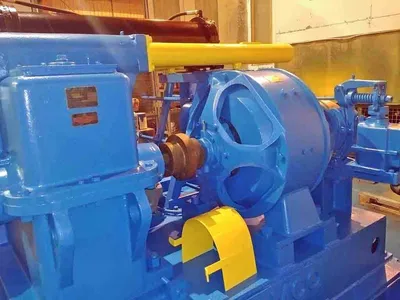

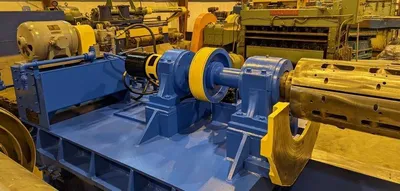

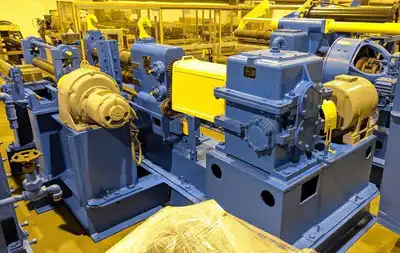

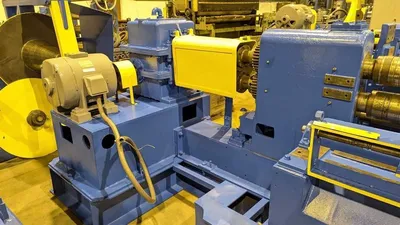

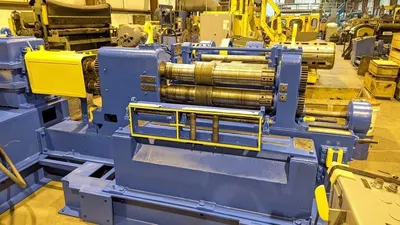

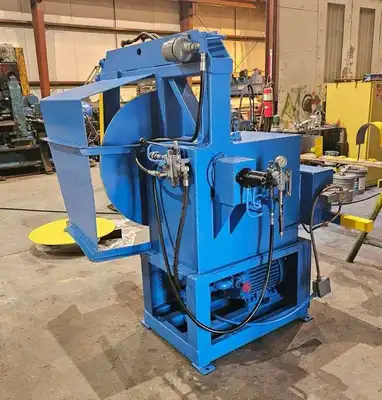

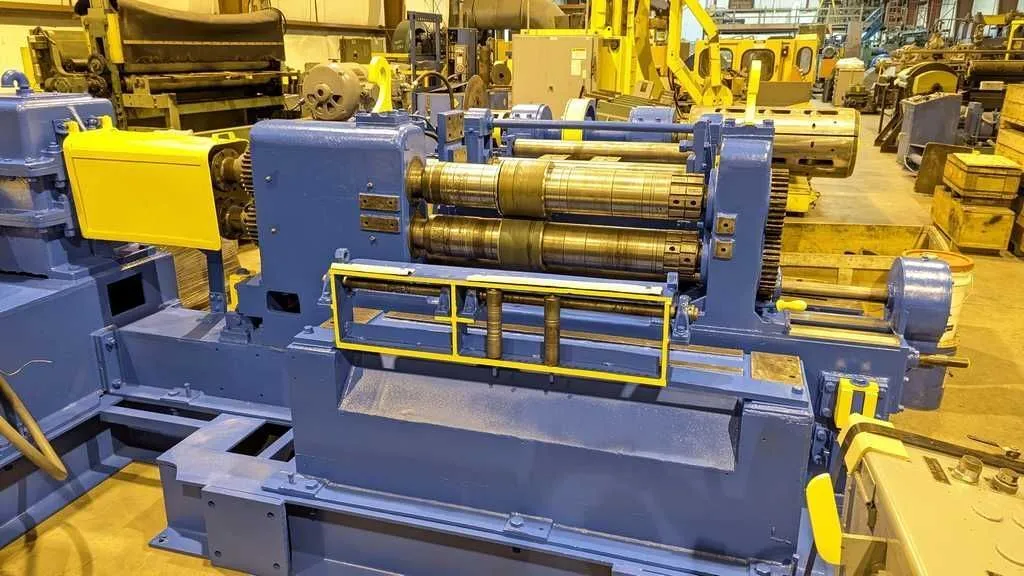

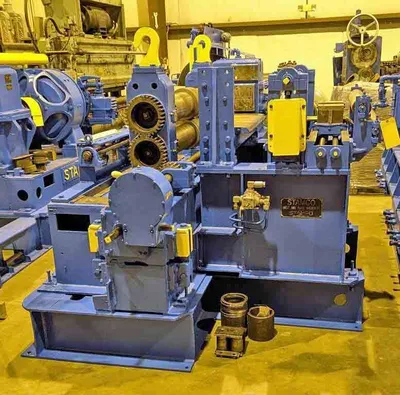

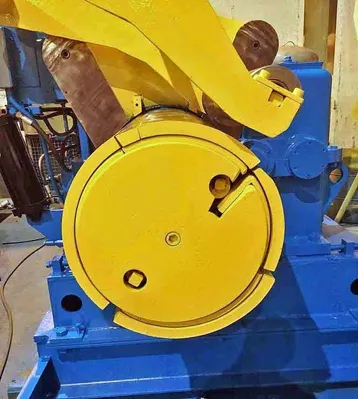

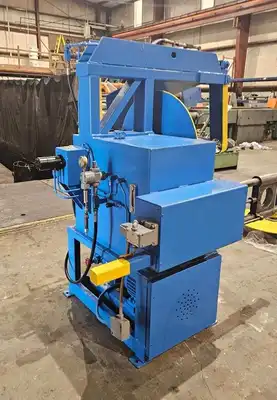

10,000 lb. coil weight capacity, 2" to 32" width capacity, 70" O.D. entry coil capacity, 64" O.D. exit coil capacity, material thickness 0.010" to 0.105", line direction right to left, operating speeds 110 to 345 FPM (bare drum speed) and 600 FPM (coil build-up speed), consisting of: Stamco Uncoiler, hydraulic link-type expansion, 16" to 20" I.D. range with pads, 4-segment mandrel, 33" face mandrel, band brake with hydraulic adjustment, sliding base, self-contained hydraulic power unit, 48" passline from floor to center of mandrel, 70" O.D. capacity, overall size 140" L x 70" W x 66" H, Entry Passline Rolls, 4" diameter x 34.5" face, Entry Side Guide Rolls with manual adjustment, Entry Driven Pinch Rolls, 4" diameter x 34" face, 1.5 HP AC gearmotor drive, (2) Stamco Slitter Heads, crane-removal type heads, 5" diameter x 33" face width arbors, double eccentric arbor adjustment, 15 HP GE DC motor, 1,175 RPM, 208–220/440V, right-angle reducer with 50.1:1 ratio, exit scrap guide, 47" passline, overall size 164" L x 77" W x 72" H, Tension Stand, pad drag type, 48" wide pads, manual screw pressure adjustment, overall size 70" L x 62" W x 65" H, Stamco Recoiler, S/O 15358, Machine No. 2361, 20" diameter x 35" face drum, manual clamp and expansion, 44.5" passline from floor to center of drum, hydraulic pushoff, overarm separator, 64" O.D. capacity, 30/40 HP Westinghouse DC motor (less drive), 575/1725 RPM, 230V, reducer with 26.05:1 ratio, electric holding brake, powered gearbox lubrication, overall size 134" L x 84" W x 77" H, Exit 3-Arm Turnstile by Stamco, 10,000 lb. capacity per arm, manual rotation, approximately 42" usable arm length, C-hook type arms with 5.5" W x 6" H slot, 53.5" passline from floor to top of arms, overall size 114" L x 97" W x 80" H, Scrap Winder by North Central Machine, approximately 30" diameter x 24" wide scrap ball capacity, hydraulic motor driven, clam-shell type open/close with hydraulic cylinder, hydraulic cylinder-operated oscillating scrap guide, self-contained hydraulic power unit, overall size 77" L x 60" W x 77" H, Main Operator's Control Panel, overall size 48" L x 34" W x 39" H, Slitter Tooling including knives, spacers, and rubbers, removed and in storage in Toledo, OH.
