24" x 5.00" x 12,000# Stamco Slitting Line

Description

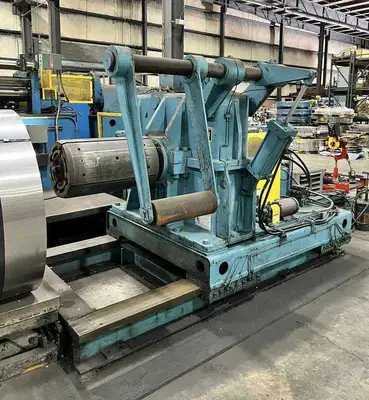

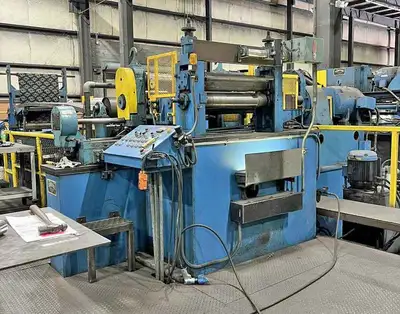

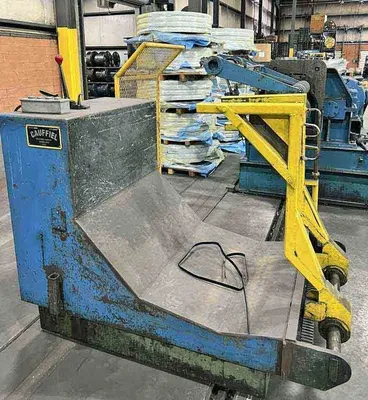

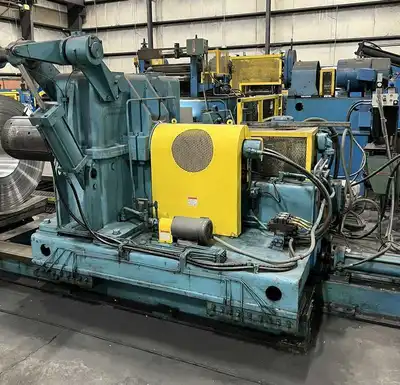

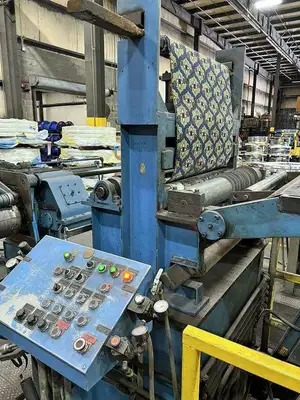

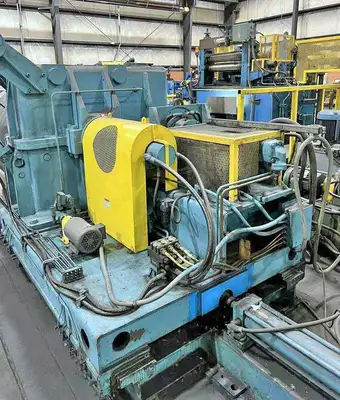

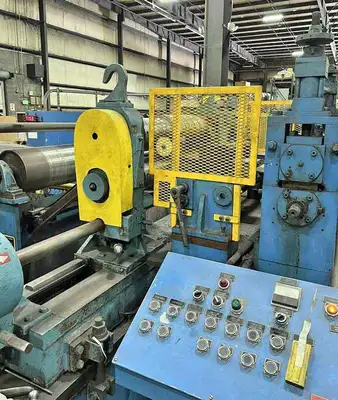

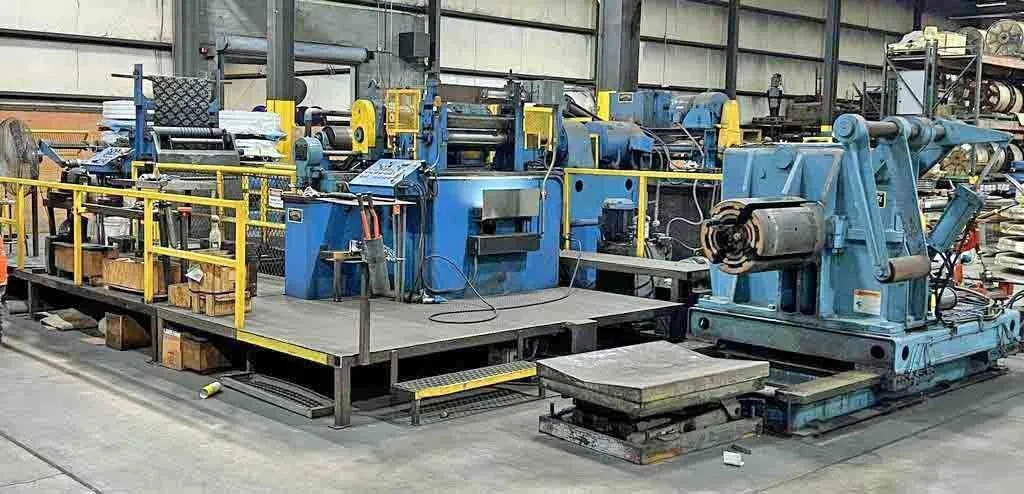

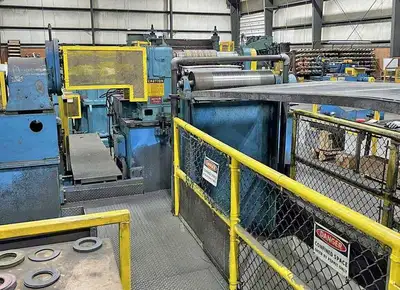

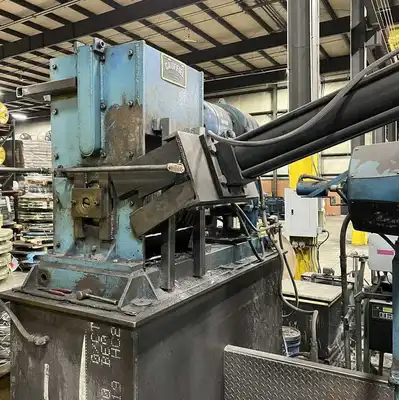

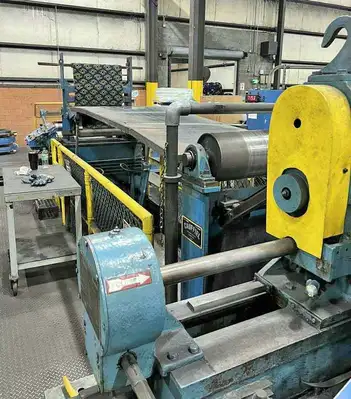

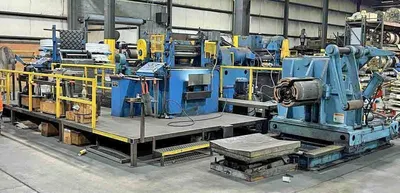

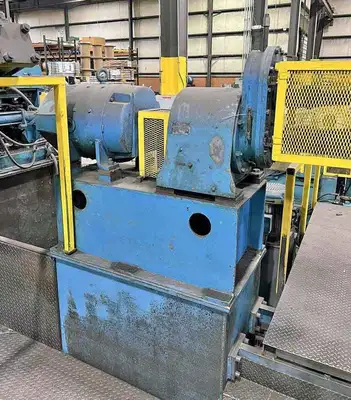

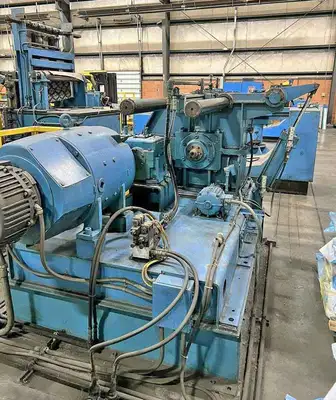

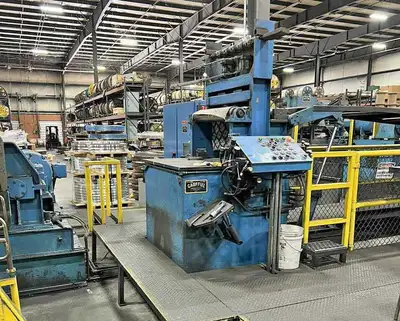

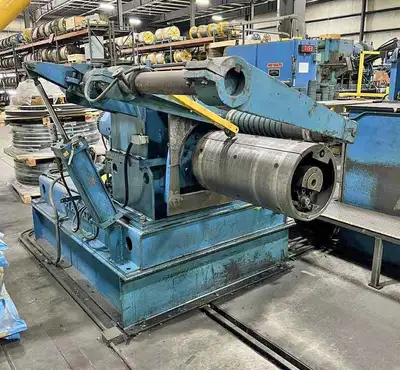

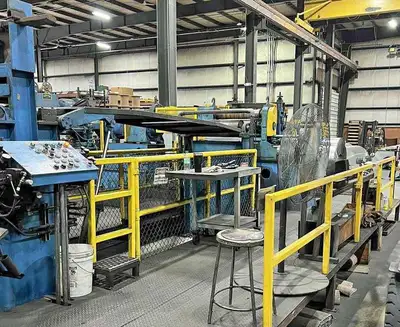

24" Width Slitting Line, 12,000 lb. weight capacity, coil I.D. 10"–20" entry and 16" exit, coil O.D. 72" in and 60" out, line speed 700 FPM, line direction right to left, consisting of: Entry Coil Lift by American Lift, stationary lift, 48" bed width, 12.5" from floor to bottom of "V" cradle, hydraulic scissor lift, overall size 48" L x 35" W x 14" H, Mandrel Uncoiler by Stamco, 28.5" face mandrel, hydraulic expansion 10"–20" I.D. range with pads, hydraulic feed-up motor, Wichita water-cooled brake, hydraulic slide base, overarm hold-down roll, 72" coil O.D. capacity, overall size 180" L x 87" W x 83" H, Water Cooler, Hydraulic Power Unit, North America Edge Control with photoelectric control, Slitter Head by Stamco, removable head (1 head), 5.00" diameter arbors, eccentric arbor adjustment, entry driven pinch rolls, entry side guides with center hold-down, 25 HP DC motor drive, integrated pinion stand reducer, overall size 184" L x 58" W x 100" H, Exit Passline Roll, 11" diameter x 36" face roll, overall size 46" L x 38" W x 80" H, Pit Cross Over Table attached to tension stand, Scrap Winder Baller, AC motor driven, hydraulic cylinder ball dump, overall size 88" L x 76" W x 99" H, Tension Stand by Cauffiel, air cylinder pad tension operation, entry and exit separator bars, overall size 72" L x 58" W x 108" H, Recoiler by Stamco, 16" diameter x 31" face drum, manual grip and expand, overarm separator, 25 HP GE DC motor, 400/2400 RPM, 240V, 2-speed reducer, 60" O.D. capacity, overall size 152" L x 81" W x 68" H, Exit Coil Car, hydraulic lift and travel, 40" wide bed, 9" from floor to bottom of "V" cradle, self-contained hydraulic unit, coil keeper bars, overall size 76" L x 46" W x 52" H, Slitter Tooling, removed and in storage in Toledo, OH.
