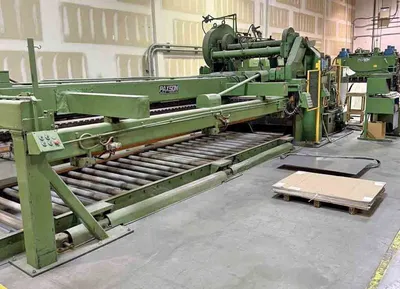

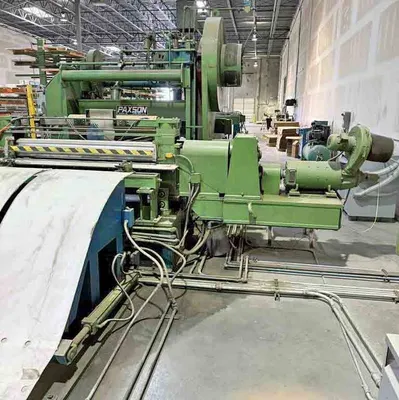

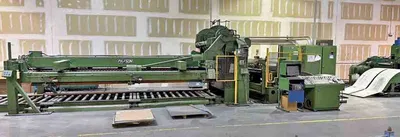

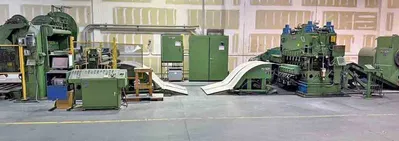

1976 Paxson Cut to Length Line

Description

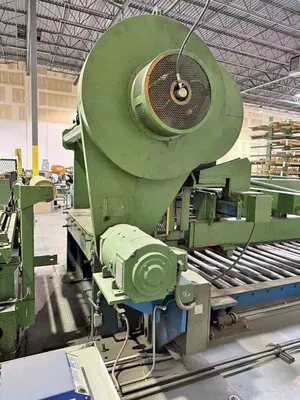

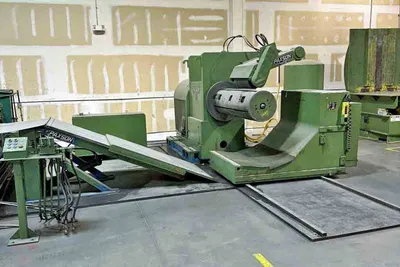

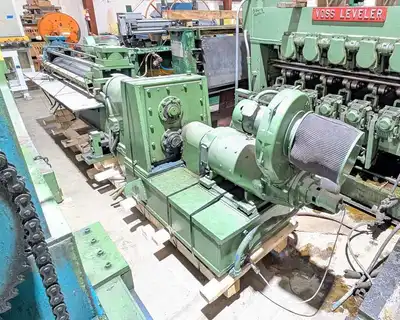

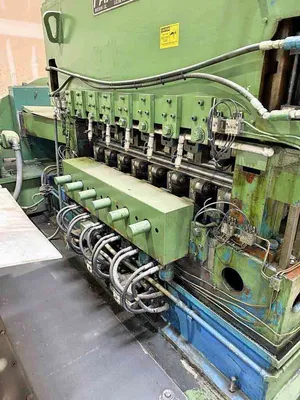

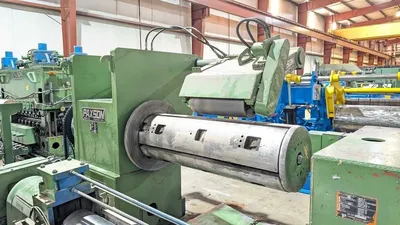

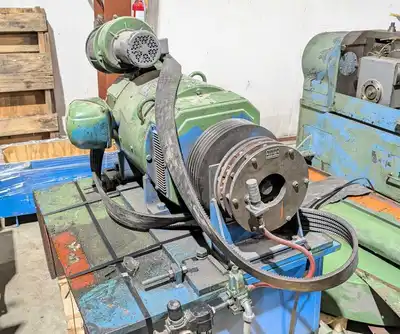

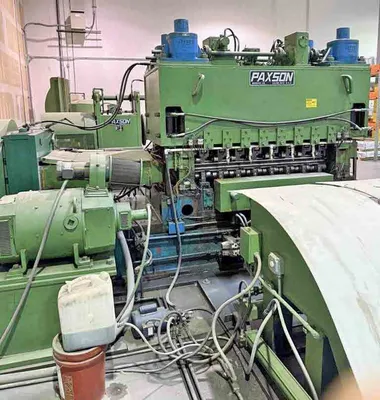

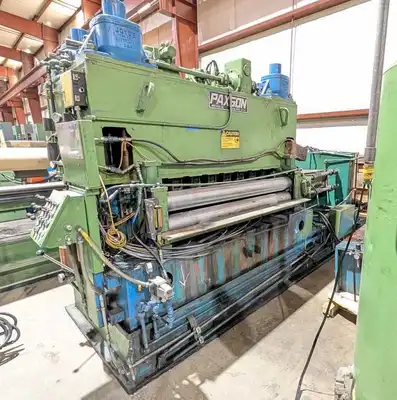

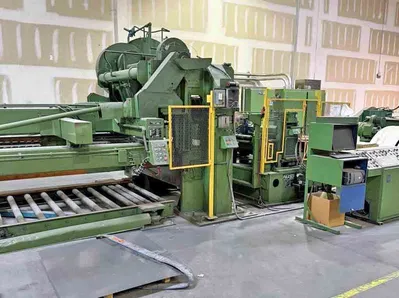

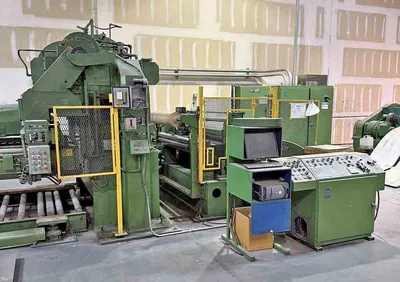

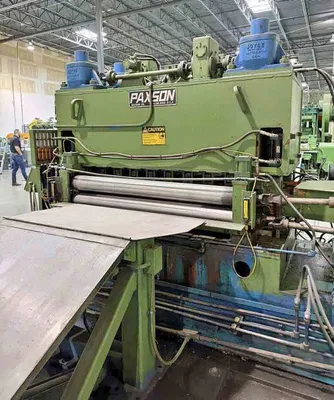

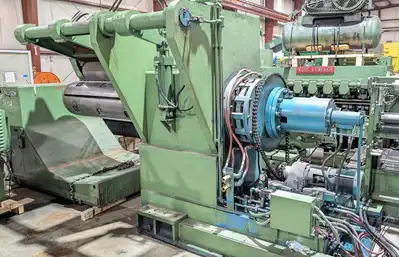

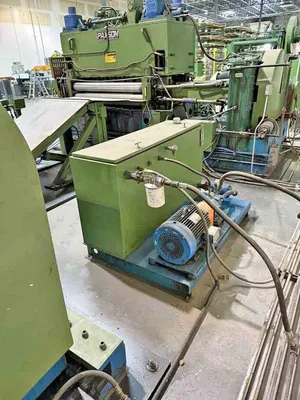

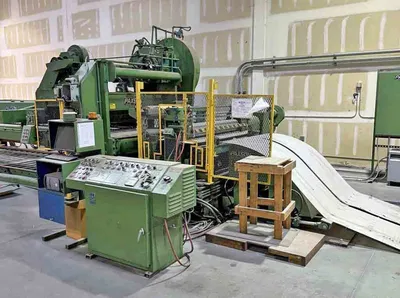

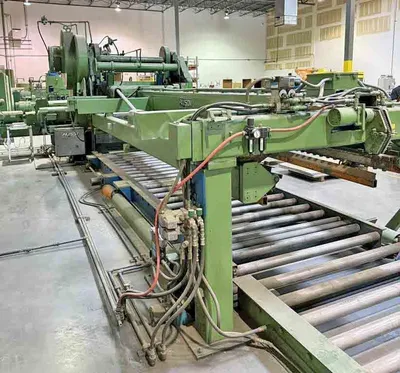

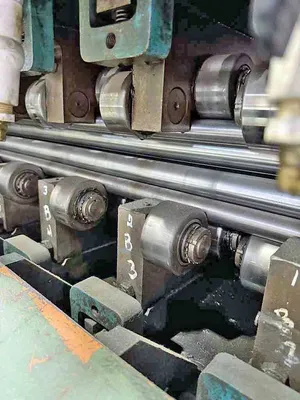

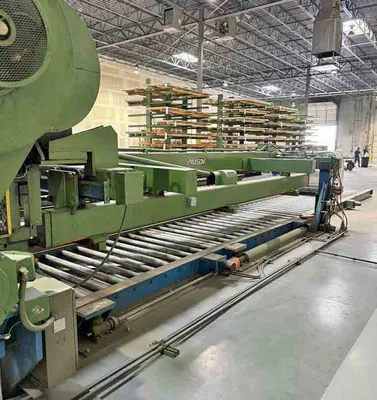

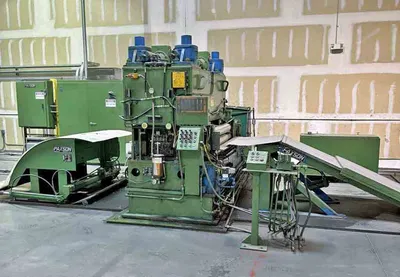

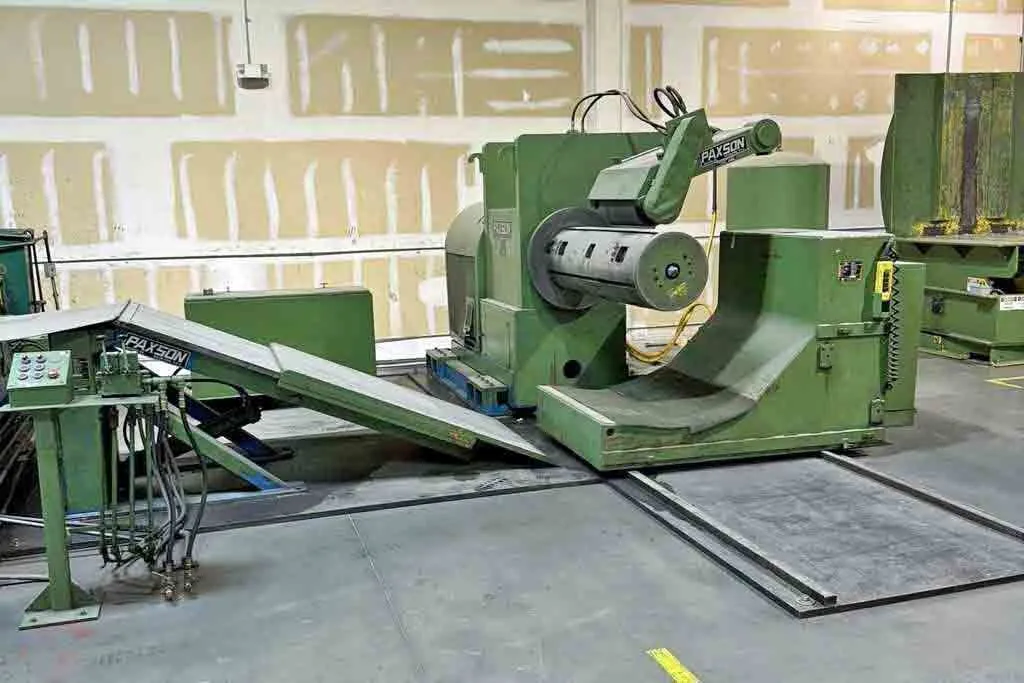

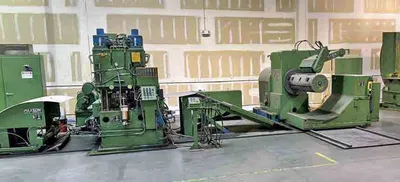

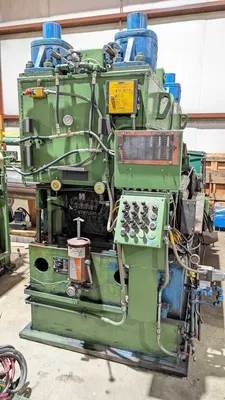

Width Capacity: 60", Thickness Capacity: 0.020" - 0.125" @ 50,000 PSI Shear Strength, Coil I.D.: 20" - 24", Coil Weight Capacity: 40,000 lbs., Line Speed: 30 - 300 FPM, Line Direction: Right to Left, Consisting of: Entry Coil Car, Above Floor Type, 48" Wide Bed, Distance from Floor to Bottom of "V" Cradle: Approximately 10", Hand Pendant Control, Self-Contained Hydraulic Power Unit, Overall Size: 94" L x 52" W x 56" H, Uncoiler, Mandrel Type, 60" Face Mandrel, Hydraulic Expansion, Powered Overarm Holddown, Slide Base, Water-Cooled Brake, Hydraulic Motor Feedup, Distance from Floor to Center of Mandrel: 48", Overall Size: 166" L x 95" W x 65" H, Peeler Table, Hydraulic Lift & Extend, Paxson Precision Leveler, 6 HI, S/N: 11558-36-8-76, 1.750" Diameter x 74" Face Rolls, Entry Pinch Rolls, Powered, 8 Flights of Backups (6 Flights Motorized), 125 HP WER DC Motor, 1750/2000 RPM, 500 V, Overall Size: 181" L x 75" W x 100" H, Cascade Loop Table, Roll Feed, Entry Side Guides, Full Width Rolls, Paper/Vinyl Applicator, 30 HP Emerson DC Motor, High Speed Shear, Over-Driven Mechanical Type, Manual Blade Gap Adjust, 30 HP WER DC Drive Motor, 1750 RPM, 500 V, Air Clutch/Brake, Automatic Stacker, Flipper Arm Type, Powered Width Adjustment, Powered Length Adjustment, Non-Scratching Roller Supports, 20' Maximum Length, Mechanical Screw Jack Lift Table, Powered In-Line Eject Conveyor, Exit Runout Conveyor, Powered Rolls, Main Operator's Control Panel, Water Cooler, Main Hydraulic Power Unit, Electrical Controls and Drives, Line is in Storage, Toledo, OH.
