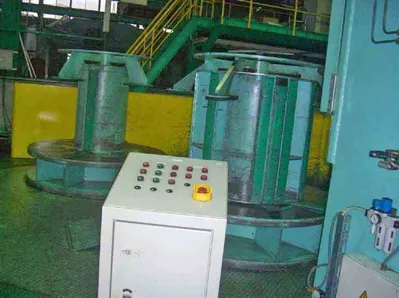

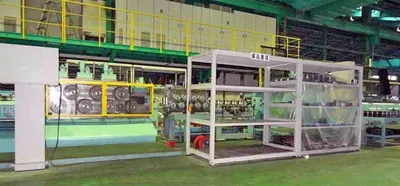

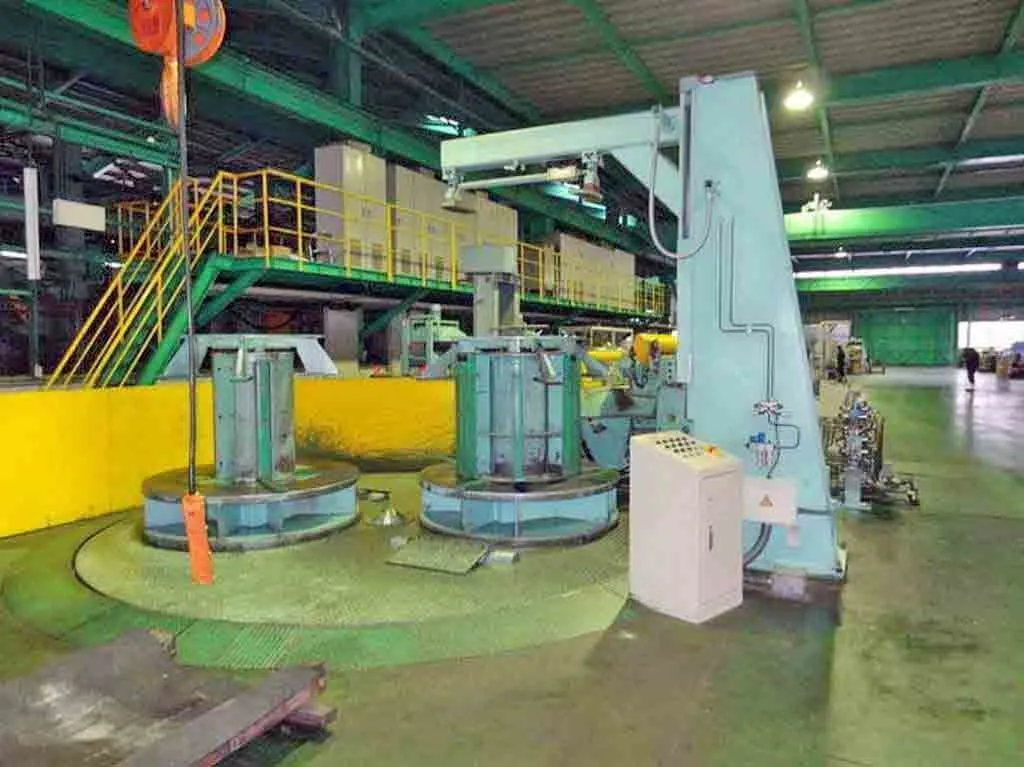

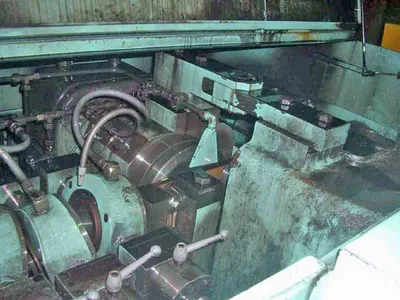

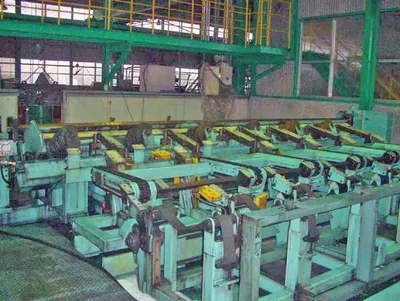

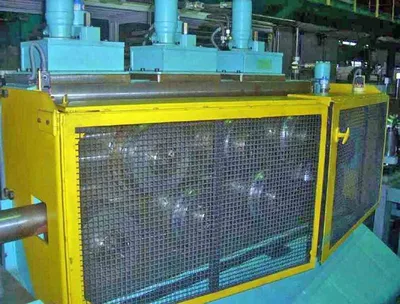

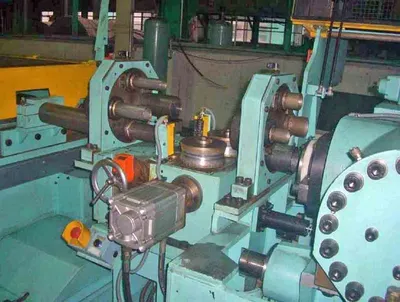

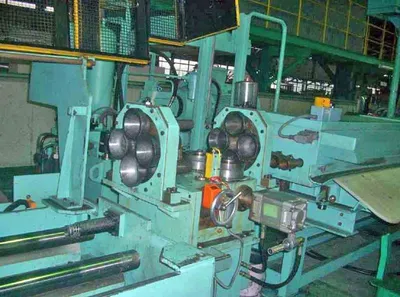

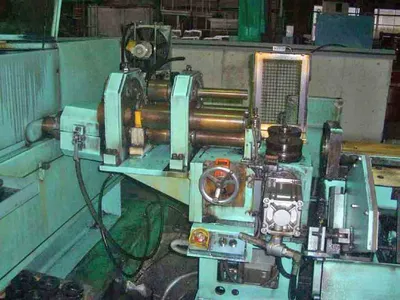

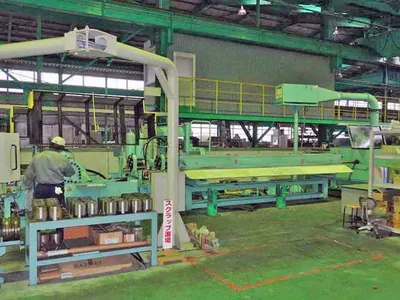

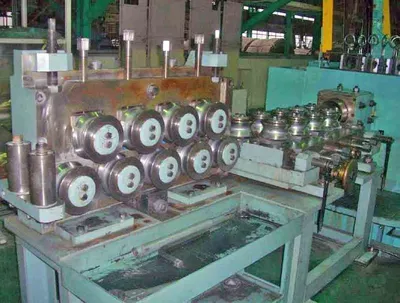

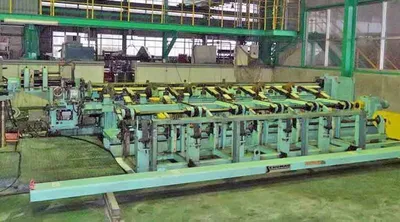

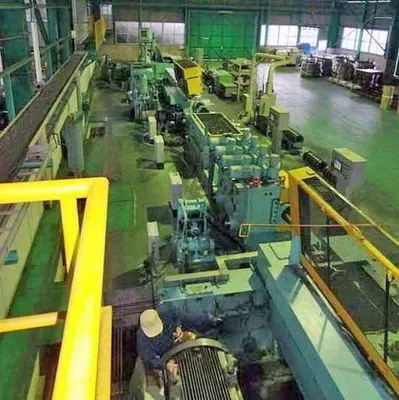

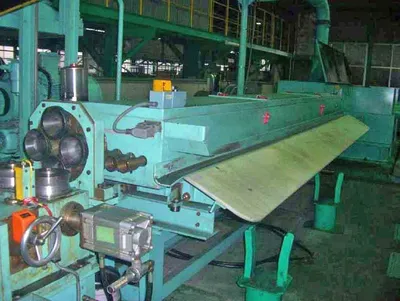

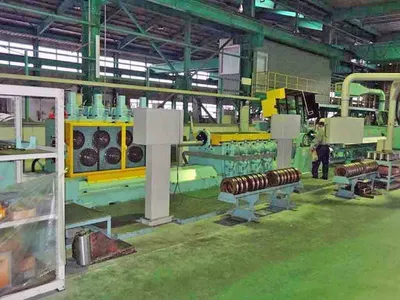

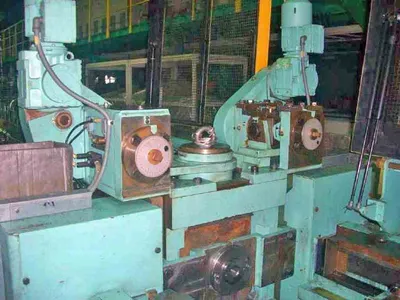

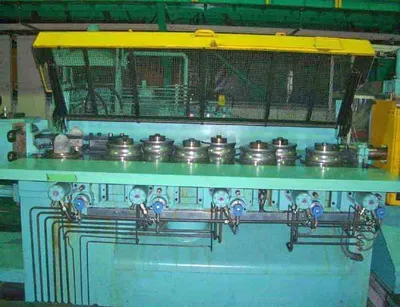

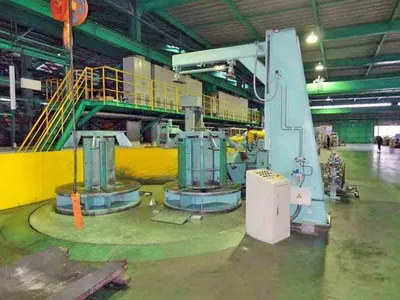

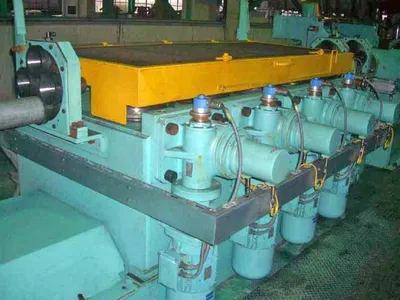

2006 Schumag Drawing Machine Line, Model: CDM-KZ-RP-IVB

Description

YEAR: 2006, Schumag Drawing Machine Line, Model: CDM-KZ-RP-IVB, commissioned in 2007 and stopped production in 2017, material capacities: Aluminum Bar 0.866" - 2.36" Dia. (22mm - 60mm), Steel Pipe 2.36" (60mm), Steel Round Bar 2.08" (53mm), Steel Hexagonal Bar 1.96" (50mm), Steel Square Bar 1.77" (45mm), Flat Bar 2.75" (70mm), line speed 33 - 130 FPM (10 - 40m/min), cutting length 78" - 196" (2000 - 5000mm), Drawing Machine: line max. speed 130 FPM (40m/min), motor rated speed 750 RPM, gear ratio (1/29.105)/(25/40)=1/18.2, Shear: max. speed 196 FPM (60m/min), motor rated speed 3000 RPM, gear ratio 1/28.295, gear traverse PLG 1rev./35mm/1024p (29.2609p/1mm), Outlet Table Traverse Roll: motor rated speed 3000 RPM, roll diameter 5.2" (131.25mm), gear ratio 1/7.71, line speed 183.27m/min/3000rpm (40m/min/654.77rpm), End Straightener Traverse Roll: motor rated speed 1800 RPM, roll diameter 7.8" (198.85mm), gear ratio 1/26.921, line speed 41.75m/min/1800rpm (40m/min/1724.55rpm), Shear Inlet Traverse Roll: motor rated speed 3000 RPM, roll diameter 5.2" (131.25mm), gear ratio 1/7.71, line speed 183.27m/min/3000rpm (40m/min/654.77rpm), Shear Outlet Traverse Roll: motor rated speed 3000 RPM, roll diameter 5.2" (131.25mm), gear ratio 1/7.71, line speed 183.27m/min/3000rpm (40m/min/654.77rpm), Main Motor: Drawing + Roller Straightener + Shearing Cutter 550 kW, Polishing 150 kW, Pusher Pointer 150 kW, total electric consumption approximately 1100 kW, equipment includes two Vertical Type Uncoilers, Horizontal Type Pre-Straightener, Vertical Type Pre-Straightener, Horizontal Type Pre-Straightener (left 4 roll, right 5 roll), Vertical Type Pre-Straightener (top 3 roll, bottom 4 roll), Horizontal Type Pre-Straightener (left 5 roll, right 4 roll), Vertical Type Pre-Straightener (top 4 roll, bottom 5 roll), Push Pointer with 800-ton power and 400mm stroke, Drawing Machine Body, motor 356.25 kW inverter, N1: 0-1455 rpm, N2: 50 rpm, Horizontal Type Straightener (left 3 roll, right 4 roll), Vertical Type Straightener (top 4 roll, bottom 3 roll), Send-off Pinch Roll, Hydraulic Type Shearing Cutting Machine, Intermediate Pipe Receiver Table, 8-Nozzle Type Polishing Machine (150 kW motor), Pinch Roll for Distribution and Carry-out, Carry-out Table, Product Pool, Reduction Gear, Motors/Pipes, and Operation Panel (touch panel type).
