Tru-Tech 10 Stand Rollforming Line

Description

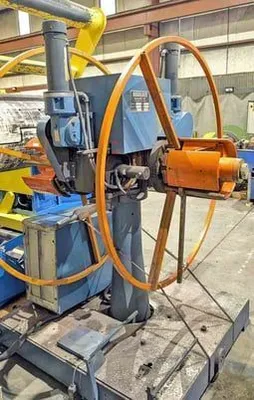

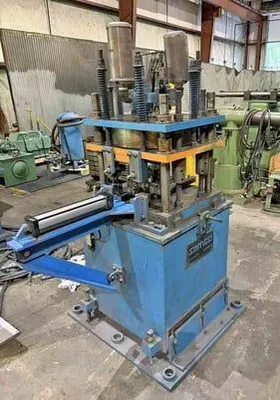

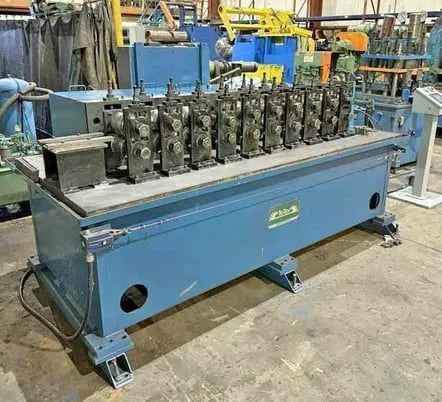

Tooled for (2) Sizes of Hat Channel (Furring Channel), Overall Width: 2.6875" and 3.500", Overall Height: 0.875" and 1", Leg Size: 0.50" and 1.00", Top of Hat: 1.250", Consisting of: Double-End Uncoiler – Bruderer, New in 1991, Model: M-2/2000, S/N: 91-4829, Hydraulic Wedge Type Expansion, 14" - 17" Expansion Range, Bolt-On Wood Pads for 20" I.D. on (1) Head, 11.5" Face Mandrels, Passline: 41.5" from Center of Mandrel to Top of Base, Each Head Belt Driven by 1 HP Variable Speed DC Motor through Reliance Reducer (One Drive Belt Missing), Drive Speed: 65 FPM Max., Manual Rotation, Operators Panel w/Contrex M-Trim Digital Motion Control, Overall Size: 76" L x 60" W x 83" High, Rollformer – Tru-Tech 10 Stands, 1.50" Dia. Spindles, 7.625" Rollspace, 2" Vertical Adjustment (4" - 6"), 8" Horizontal Centers, 6" from Base to Center of Bottom Spindle, 34.25" from Floor to Top of Base (Can Be Reduced to 30.5" by Removing 3.75" Risers), AC Drive Motor, New Controls Added by Samco in 2010, Lenze AC Tech SMVector Variable Frequency Drive, Operators Control Pedestal, Overall Size: 109" L x 68" W x 62" High, Air Ram Cut-Off Press – Samco, New in 2010, Model: SMHP-25, S/N: 92-1985/7997-31, Capacity: 25 Ton, Stroke: 3", Die Space: 18" F to B, 22" L to R, Max. Die Height: 16", Air Supply: 80 PSI Max., Passline: 39.5" from Floor to Top of Die Rails, Air Cylinder for Flying Die, Free-Standing Accumulator Tank, Overall Size: 56" L x 40" W x 76" High.
