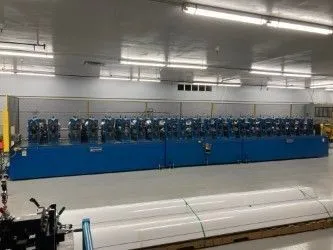

2.5” Shaft Diameter, 22 Passes (Can Be Configured to 16), 24” Roll Space (Can Also Be Configured to 22”), 18” Horizontal Centers, 6” – 11” Vertical Centers, 8.125” (Base to CL Bottom Shaft), 11 Single Output Pinion Boxes (Each Pinion Drives Two Stations), 11 Idler Gear Assemblies (Each Transmits Motion to Lower Shafts for Two Adjacent Stations), 50 HP Motor, 480V/3PH.
