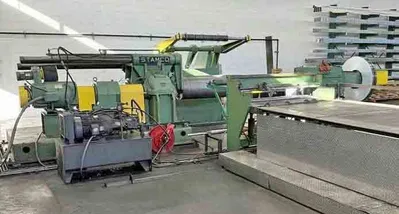

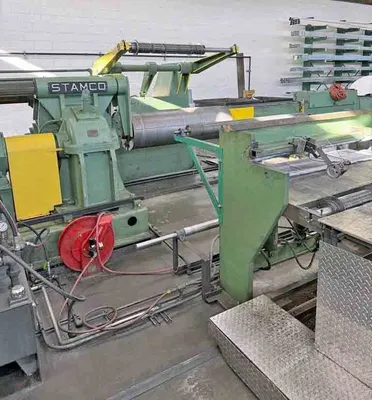

54" x 6.50" x 20,000# Stamco Slitting Line

Description

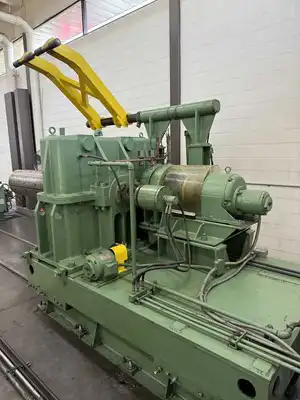

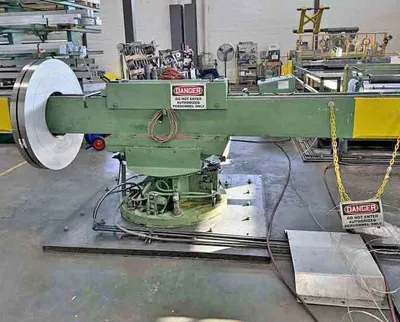

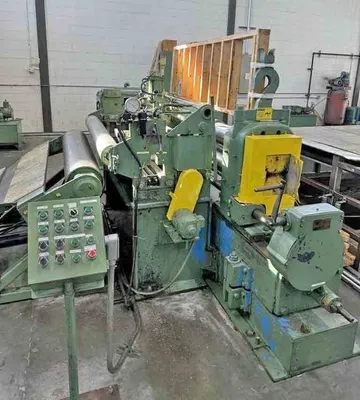

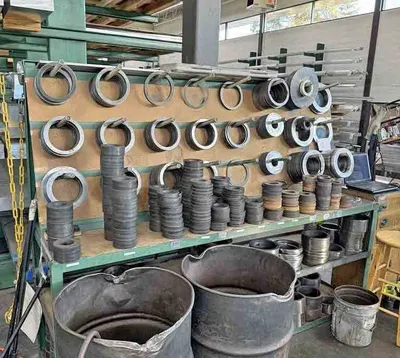

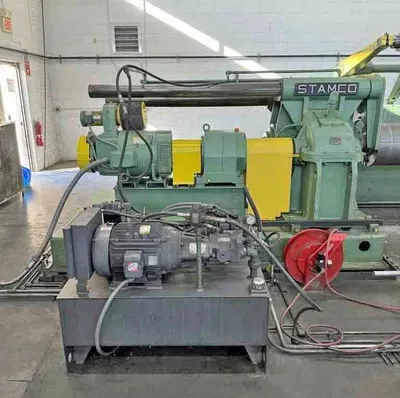

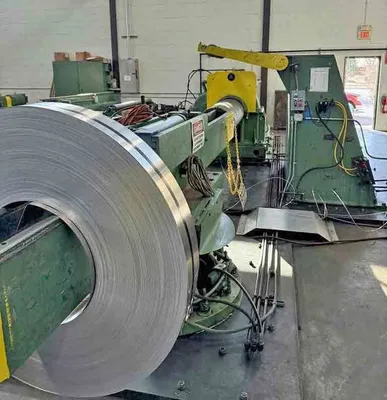

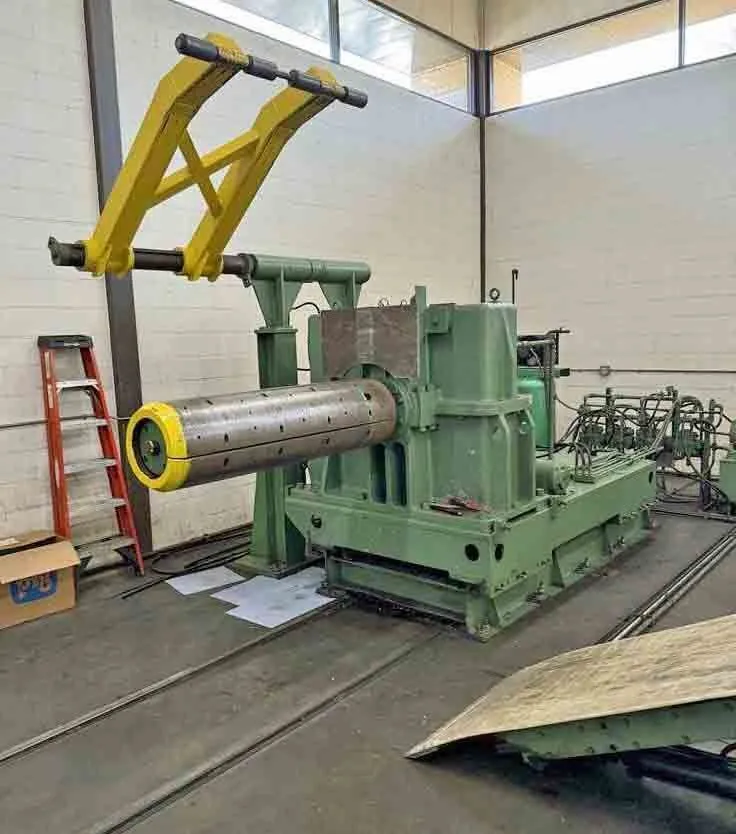

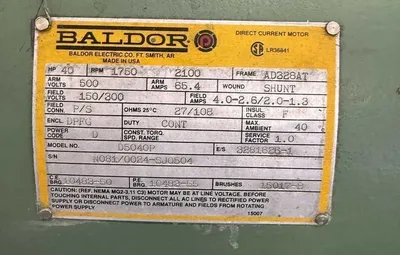

Weight Capacity: 20,000 lbs., Width: 54", Coil I.D. Entry: 16" - 20", Coil I.D. Exit: 20", Coil O.D.: 72", Line Direction: Left to Right, Line Speed: 250/300 FPM (Constant), Consisting of: Entry Coil Car – Paxson, Hydraulic Motorized Screw Jack Lift, Hydraulic Motorized Travel, Removable Riser for Small Coil O.D.'s, Self-Contained Hydraulic Power Unit, Hand Pendant Control, Mandrel Uncoiler – 56" Face Mandrel, Hydraulic Expansion, Slide Base, (2) Fawick Water Cooled Brakes, 1.5 HP AC Gearmotor Feedup Drive, 220/440 V, Stamco Integral Reducer w/5.4:1 Ratio, Lube Pump, Passline: 52" from Floor to Center of Mandrel, Shipping Weight: 17,500#, Free Standing Overarm Holddown Roll, Entry Hydraulic Power Unit – 20 HP Baldor AC Motor, 1760 RPM, 230/460 V, 60 Gallon Tank, Valve Stand, Peeler Table – Hydraulic Lift and Extend, 60" Wide Passline Roll, Slitter Entry Unit – Entry Passline Roll, Adjustable Roller Side Guides, Driven Pinch Rolls, (1) Removable Head Slitter – 6.50" Dia. x 60" Face Arbors, Eccentric Arbor Adjustment, 40 HP Baldor DC Motor, 1750/2100 RPM, 500 V, Stamco Reducer/Pinion Box 3.2:1 Ratio, Hansen Secondary Reducer 8.3:1 Ratio, Slitter Tooling, Drag Board Tension Stand – Entry Separator Tooling Bar, Exit Passline Roll, (3) Air Cylinder Tension Control, Recoiler – 20" Dia. x 60" Face Drum, Manual Clamp and Expansion, Hydraulic Pushoff, 75 HP Baldor DC Motor, 1750/2100 RPM, 500 V, w/Blower, Stamco Integral Reducer w/3.697:1 Ratio, Hansen Secondary Reducer w/10:1 Ratio, Shipping Weight: 17,000#, Overarm Separator – Free Standing, Paper Unwinder, Scrap Winder – Hydraulic Motor Drive, Level Wind, Manual Ball Removal, Exit Hydraulic Power Unit, 2 Arm Exit Turnstile – C-Hook Type Arms, 6.5" Wide x 12" High Slot in Arm, 67" Long Arms, 18" Minimum ID, 47" Floor to Top of Arm, Hydraulic Pushoff, Power Rotation, Overall Size: 184" L x 48" W x 54" High, Shipping Weight: 11,000#, Operator Controls, Removed and In Storage: Toledo, OH.
