Cauffiel Edging Line

Description

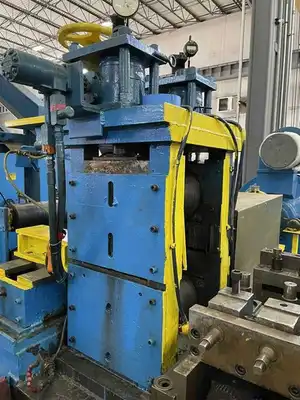

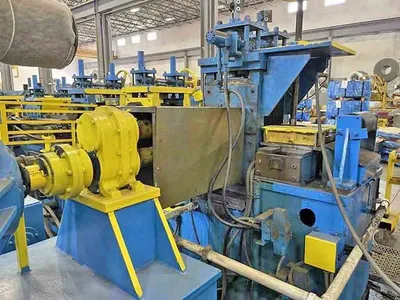

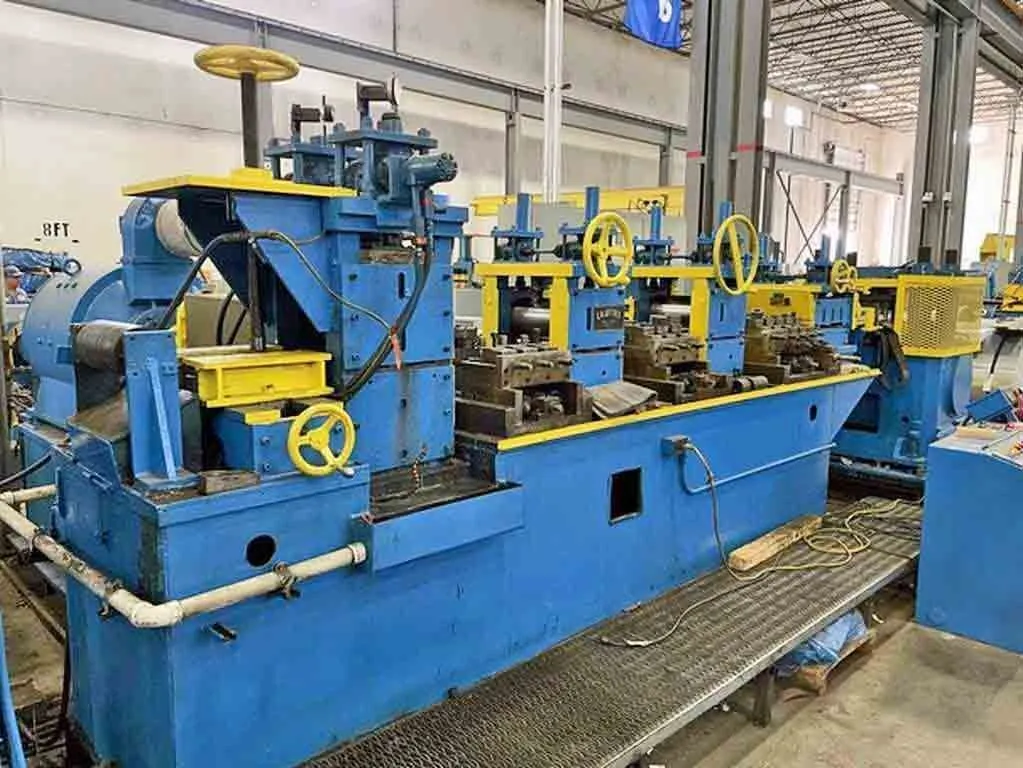

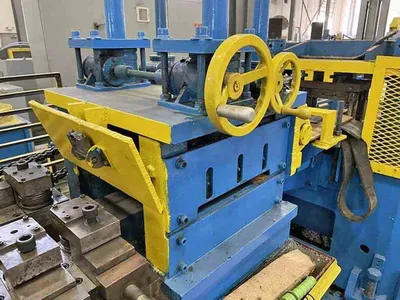

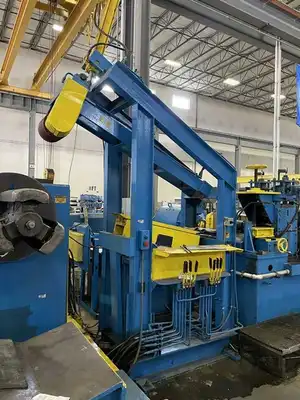

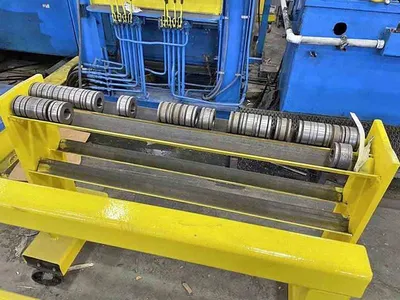

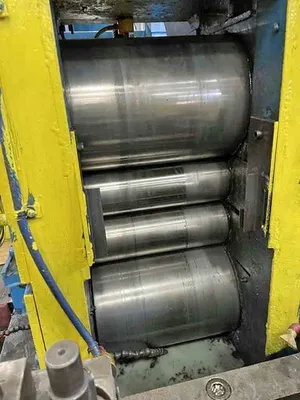

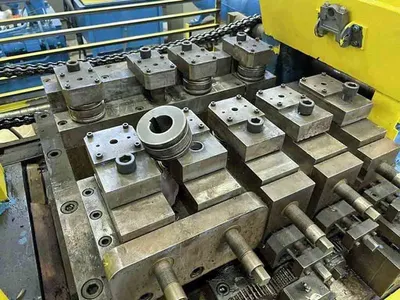

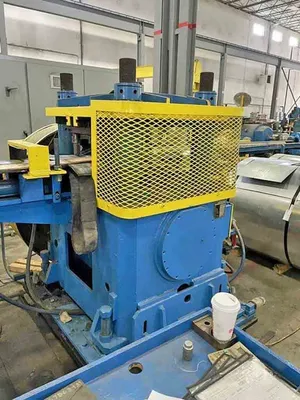

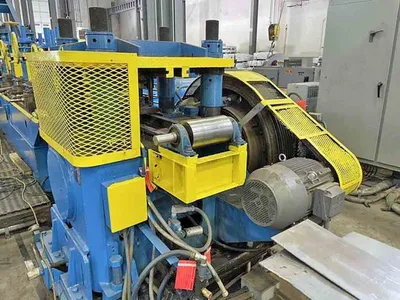

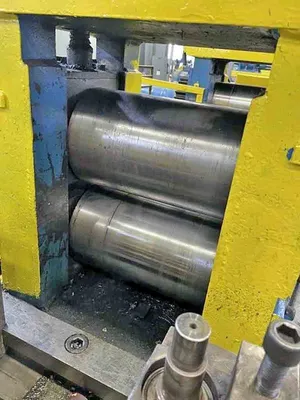

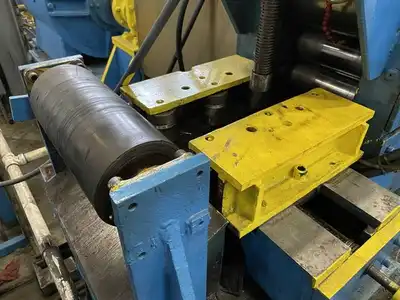

Cauffiel Edging Line, Coil Width: 2" - 10", Gauge Range: 0.064" - 0.250", Coil Weight: 10,000 lbs., Line Direction: Left to Right, Operation: Coil to Strip, Consisting of: Coil Lift – 10,000# Capacity, Lift Only, No Travel, 30" Wide Deck, 6" Bore x 24" Stroke Hydraulic Lift Cylinder, 2 Coil Keepers, Uncoiler – 10,000# Capacity, 16" - 20" Expansion Range, Hydraulic Expansion, Air Brake, Hydraulic Threading Drive, Hydraulic Slide Base, Self-Contained Hyd Unit, Overall Size W/Coil Lift: 128" L x 98" W x 86" High, Peeler / Holddown Unit – 14" W Peeler Blade, Hydraulic Cylinders for Up/Down, In/Out Movement, 14" Face x 6" Dia. Rubber Coated Holddown Roll, Hydraulic Cylinder Raise/Lower, Overall Size: 165" L x 53" W x 93" High, Edging Unit – Entry Passline Roll, Entry Edge Guides, Manual Handwheel Adjustment, 3 Roll Set per Bank, Manually Positioned Strip Holddown Screw, 4 HI Rolling Mill – 4.5" Dia. Work Roll, 13" Face, 10" Dia. Backup Roll, 13" Face, Hydraulic Motor Adjusted Screwdowns, 200 HP DC Motor Driven, W/Blower, Coolant Pump and Tank in the Base, Free Standing Cooling Unit, Edging Die Set #1 – 3 Roll Set per Bank, "Missing the Top Die Retainer Block on 3 Units", Single Point Adjustment for Both Banks of Dies, Operators Side Each Die is Independently Adjustable, 2 HI Mill #1 – 8" Dia. Work Roll, Manual Screw Down Adjustment, Hydraulic Motor Driven Bottom Roll, Edging Die Set #2 – 3 Roll Set per Bank, Single Point Adjustment for Both Banks of Dies, Operators Side Each Die is Independently Adjustable, 2 HI Mill #2 – 8" Dia. Work Roll, Manual Screw Down Adjustment, Hydraulic Motor Driven Bottom Roll, Decambering Section – Operators Side Bank: 5 Sets of Dies, Drive Side Bank: 4 Sets of Dies, 7 Total Dies Make Up the Decambering Section, Dies #8 and #9 Set Up as an Edging Section and Are Independently Adjustable, Single Point Adjustment for the Entire Bank In and Out, Straightener Unit – 4" Dia. Rolls, 3 over 2, Bottom Rolls Chain Driven from 2 HI Mill Stand, Exit Passline Roll, Overall Size – Edging Mill: 192" L x 62" Wide x 95" High, 4 Hi Mill Stand Drive: 110" L x 45" W x 86" High, 4 Post Cutoff – Proma – 60 Ton Capacity, Model 60 CP-2, 13" Max. Shut Height, 4" Stroke, 25 Cuts/Min., 11.5" Between Posts, 12" Shear Blade w/Hydraulic Cylinder Die Return, 15 HP AC Motor, 1175 RPM, 230/460 V, Exit Passline Roll, Overall Size: 103" L x 72" W x 78" High, Runout Conveyor Section – 15' Long, Hydraulic Cylinder Dump, Stacker Table – 15' Long, Main Operators Control Panel – Overall Size: 46" L x 25" W x 43" High, Hydraulic Power Units, Spare Mill Rolls, Edging Dies, Line is Removed and In Storage: Toledo, OH.
