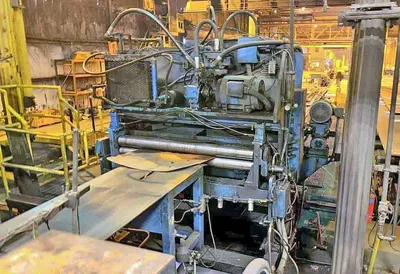

72" x 0.500" x 60,000# Delta Cut To Length Line

Description

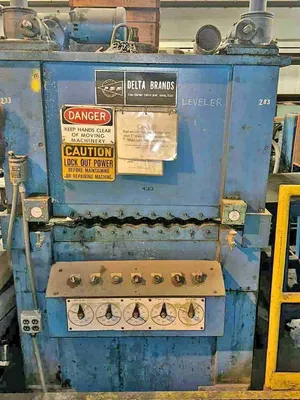

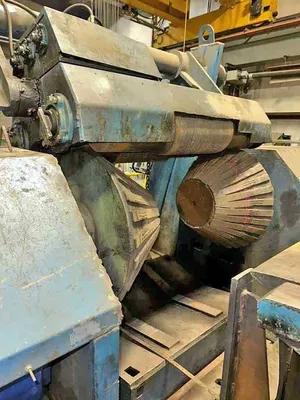

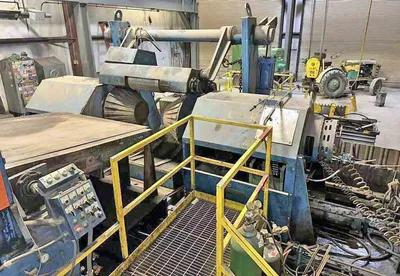

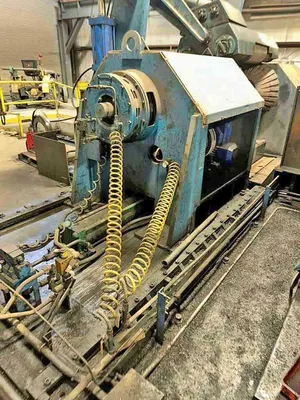

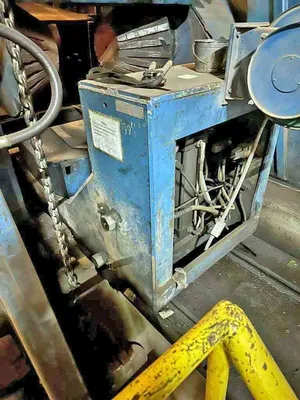

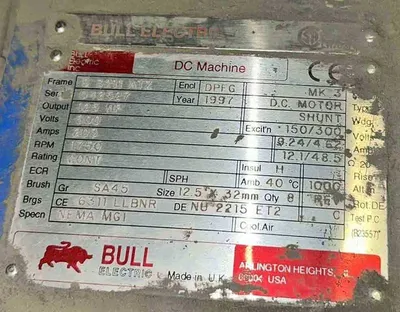

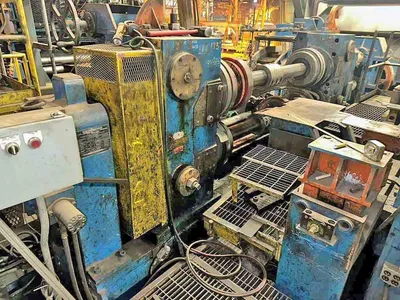

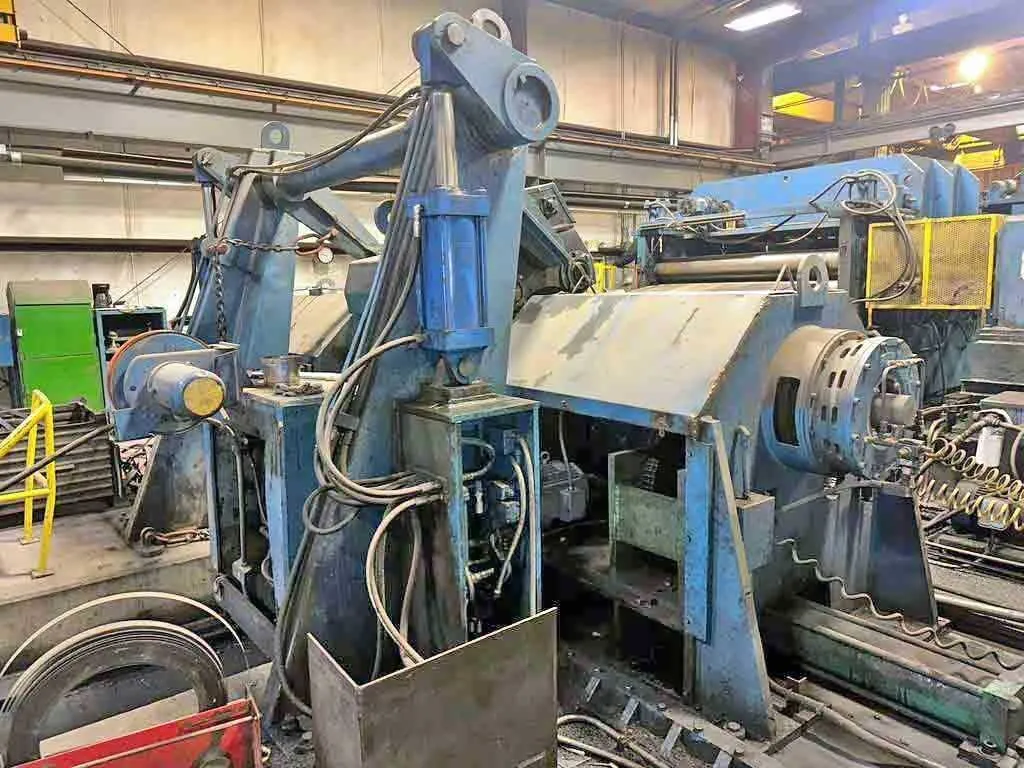

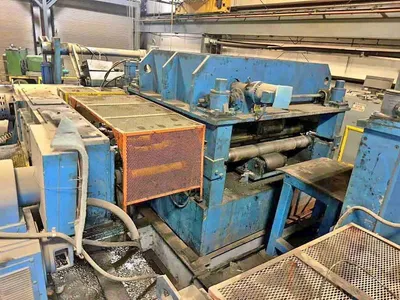

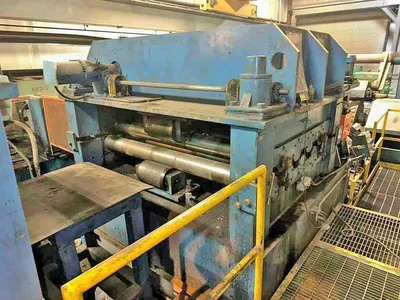

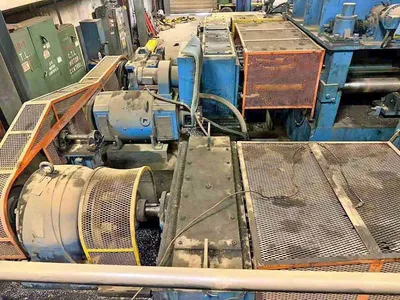

72" x 0.500" x 60,000# Delta Cut To Length Line, Consisting of: "L" Type Coil Car – 52" Wide Deck, 40" Centerline of "V" to Side Mast Allowing for an 80" OD Coil, 9" Dia. x 27" Long Lift Cylinder Body, Approx. 15" from Floor to Bottom of "V" Cradle, Self-Contained Hydraulic Power Unit, Delta Cone Type Uncoiler – Solid Non-Expanding Mandrels, Sliding Bases, Wichita Brakes on Both Mandrels, 45" from Centerline of Mandrel to Base, Feedup Drive, Renold WormMaster 60:1 Reducer & Motor, Wichita Clutch, Delta Entry Unit – Fully Articulating Peeler Table Pivots Up and Down and Extends, Pinch Rolls – 10" Dia. x 78" Face, Delta Straightener – 9 Work Rolls, 10" Dia. x 78" Face Rolls (Needs Confirming), 4 over 5 Roll Configuration, One Set of 14.5" Wide Backup Rolls on Center of Work Rolls, Delta Leveler – 19 Work Rolls, 2.5" Dia. x 78" Face Work Rolls, 9 over 10 Roll Configuration, 5 Adjustable Flights of Backup Rolls (Cam Type), The Straightener & Leveler Share the Same Drive Train – 0.500" Gauge x 72" Wide Mild Steel, 100 HP, Line Speed: 0 - 100 FPM, Side Guides, Double-Stub Edge Trimming Unit – Stamco, Eccentric Adjustment, Motor 125 HP DC, 500 V, 1750 RPM, 203 Amps, Horsburgh & Scott Reducer: 102 HP, 1.0 Ratio, Scrap Chopper – Paddle Type, One Set of Choppers for Each Side, Delta Shear – Model: SS-652-000, 0.500" Gauge Max. x 72" Wide Mild Steel, Single Rake Design, Down Acting, Entry and Exit Driven Pinch Rolls, 66" Pass Height, 75 HP, 230V Motor, Runout Tables – (2) 40' Long on Rails, Operators Console, Isolation Transformer – 145 KVA, Line Direction: Right to Left, Line is Installed.
