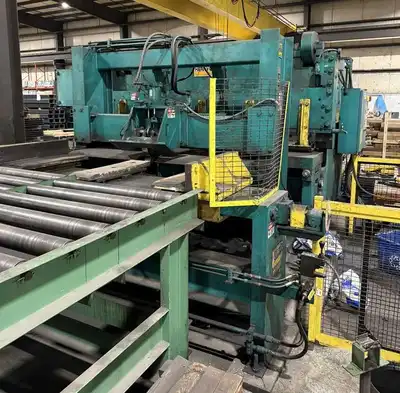

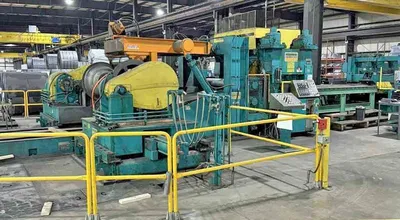

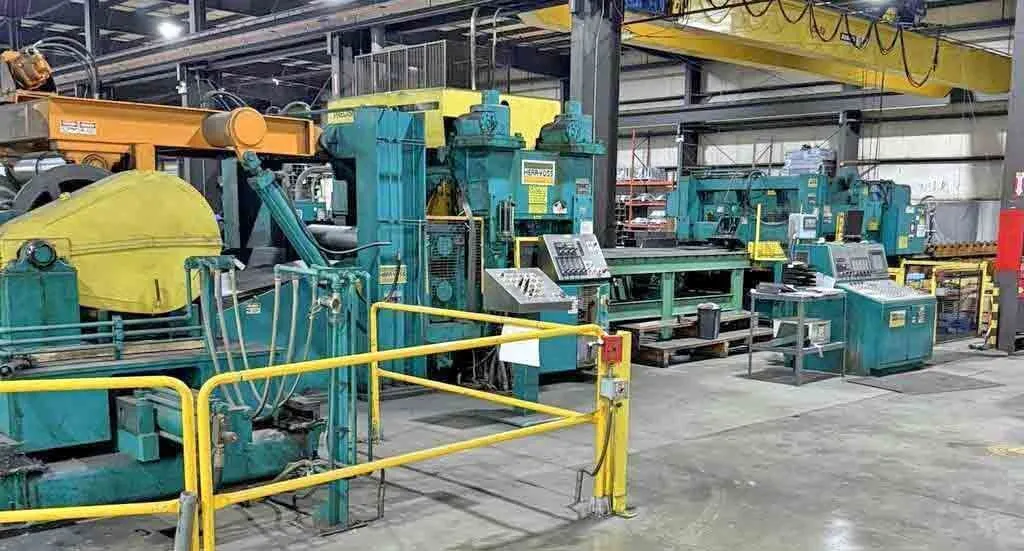

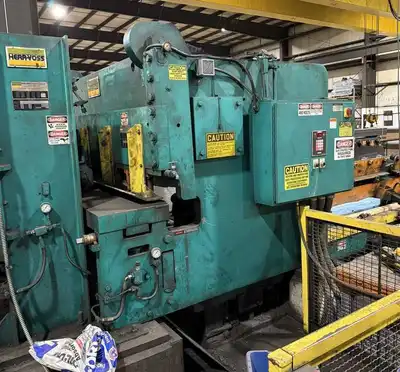

1995 74" x 0.500" x 60,000# Herr Voss Cut to Length Line

Description

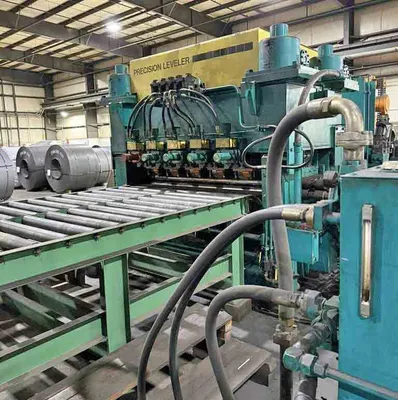

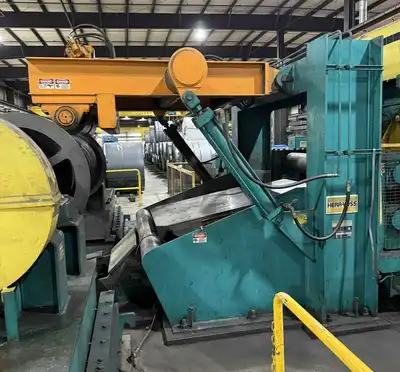

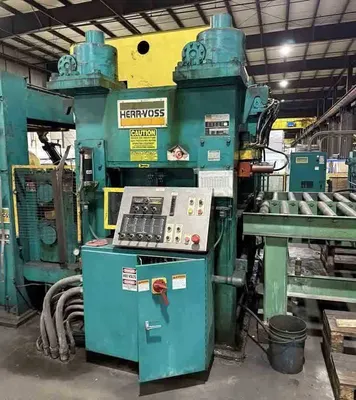

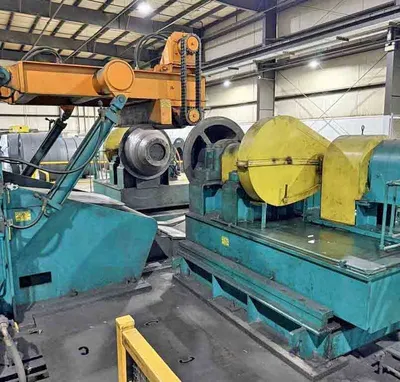

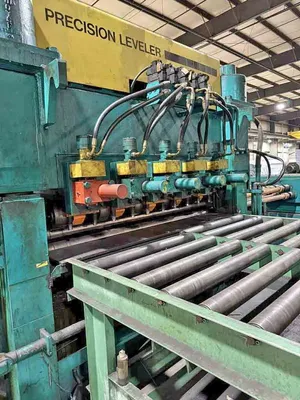

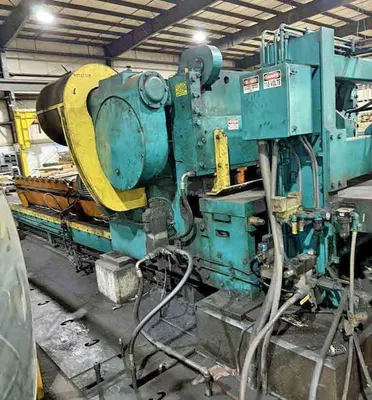

YEAR: 1995, 74" x 0.500" x 60,000# Herr Voss Cut To Length Line, Material Width: 36" to 74", Coil Weight: 60,000 lbs., Material Thickness: 0.075" to 0.500" (at 45,000 PSI Yield), 0.375" (at 80,000 PSI Yield), Coil I.D. Range: 20" to 34", Coil O.D.: 84" Max., Jog Speed: 50 FPM, Line Speed: 20 to 175 FPM, Line Direction: Left to Right, Consisting of: Entry Coil Ramp – 3 Coil Storage, Hyd. Lever-Type Holding Mechanism, Cone Type Uncoiler – S/N: 44799-003, Motorized Feedup AC Motor and Air Clutch on One Head, Wichita Water Cooled Brake on Each Head, Sliding Base on Each Head, Coil Lift with 12" Bore Hydraulic Cylinder, Threading Unit – Motorized Overarm Holddown Roll, Steel Roll Powered by AC Motor, Hydraulic Actuated Peeler Table, Entry Side Guides – Powered Width Adjustment, Precision Leveler: 4 High – Keystone Model VKL 88/4.50-11/5 4 HI, LH, S/N: 44799-005, Thickness Range: 0.096" - 0.500", 11 Work Rolls, 4.50" Dia. x 88" Face Rolls, 5 Flights of Motorized Backups, 200 HP Reliance DC Motor, 850/1700 RPM, 500 V, Squaring Guides – Powered Width Adjustment (Will Open to 80" Wide), Powered Tailout Pinch Rolls – Hydraulic Cylinder Open & Close, Measuring Unit – Entry Encoder Roll, Herr Voss Mechanical Shear – Model: 0808, S/N: 44799-009, Blade Gap Adjustment Control, Straight Blade Rake, Material Holddowns, AC Motor, Drop Type Stacker – Side Guide Retainers with Powered Side Tap, 40,000# Capacity, Min. Sheet Length: 24", Max. Stacked Sheet: 24', Runout Conveyor – 40' Long, Main Operators Control Panel, Main Hydraulic Power Unit, Includes Complete Mechanical and Electrical Drawings and Operators Manual, Removed and In Storage: Toledo, OH.
