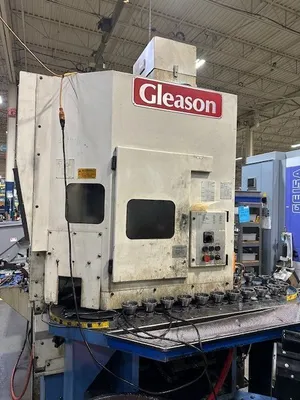

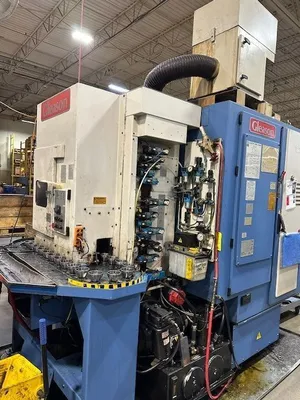

GLEASON 125GH CNC GEAR HOBBER

Description

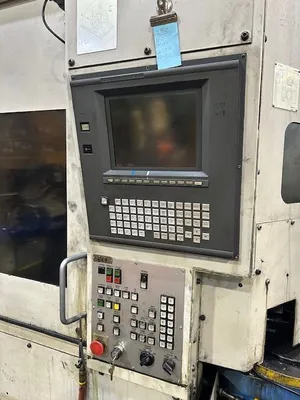

Max workpiece diameter 4.52" (125 mm), minimum workpiece diameter .25" (6.4 mm), maximum pitch/module 8 NDP (3.2 Module), maximum axial slide travel 11.81" (300 mm), maximum hob head swivel -180° to +40°, maximum hob diameter 4.53" (115 mm), maximum hob length 8.46" (215 mm), maximum hob shifting length 7.87" (200 mm), maximum work head speed 1500 rpm, optional maximum work head speed 3500 rpm, hob head drive rating 15 HP, machine weight 15,000 lbs, floor space 106" x 65" x 122" high, equipped with Fanuc 150-M CNC controls, 180-position loader with loading station, light curtains, chip conveyor, mist collection, and books and manuals.
