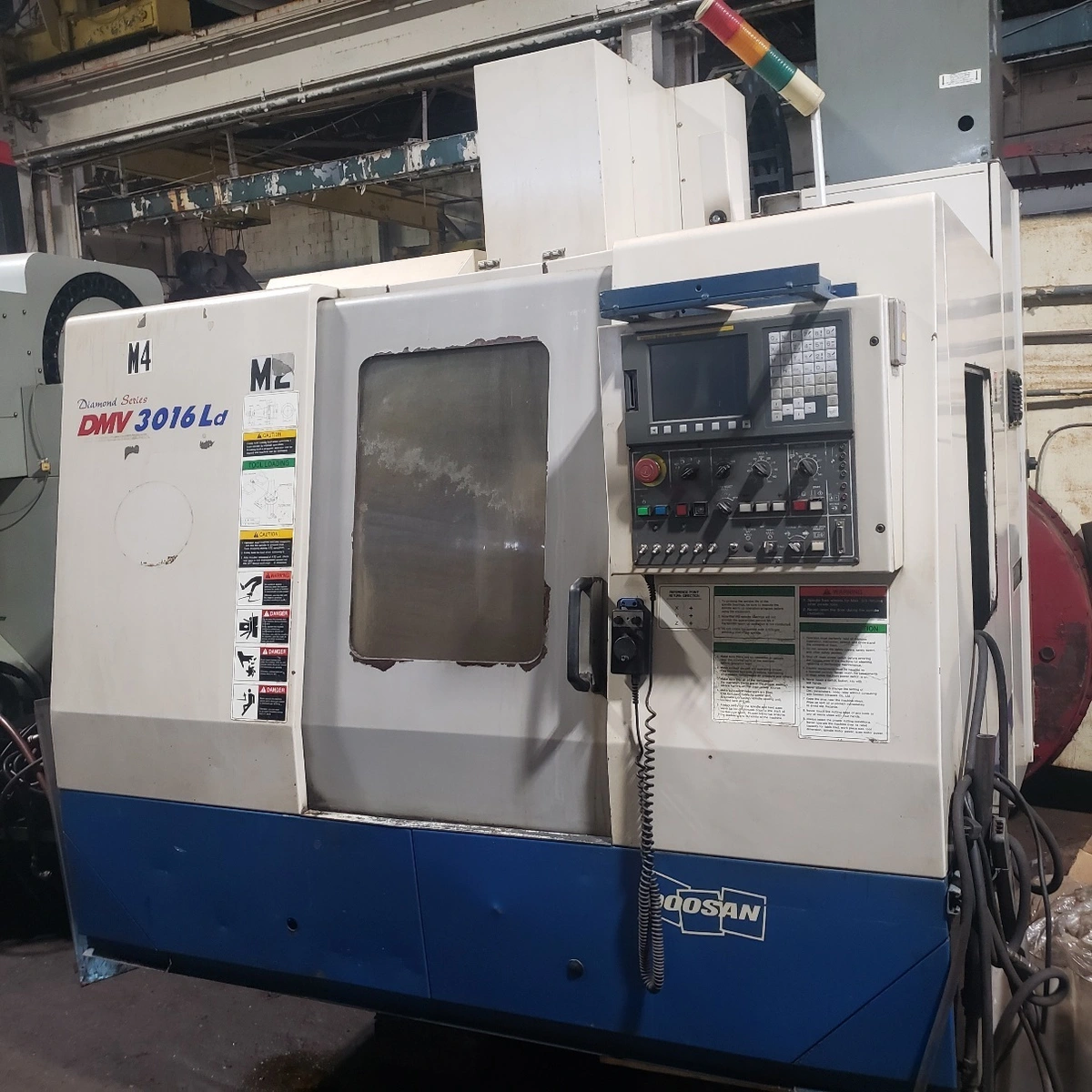

2007 DOOSAN DMV3016LD CNC VERTICAL MACHINING CENTER

Description

Capacity: X-Axis Travel............30" Y-Axis Travel............16" Z-Axis Travel............20" Table Loading Area............39.4" X 17.7" Table Load Weight............1,320 Lbs. Spindle: Spindle Nose to Table Top............5.9" to 26" Column to Spindle Center............17.7" Spindle Taper............No. 40 Spindle Speed............8,000 RPM AC Spindle Motor............15 HP Spindle Torque............102 Ft-Lbs. Automatic Tool Changer: Number of Tools............24 Tool Shank............CAT-40 Tool Weight - Maximum............18 Lbs. Motion: X & Y Axis Rapid Traverse Rate............1,181 IPM Z Axis Rapid Traverse Rate............945 IPM Cutting Feed Rate............315 IPM General: Floor Space............117" x 96" Actual Machine Dimensions............90"(L-R) x 95"(F-B) x 122"(H) Machine Weight............12,320 Lbs. Voltage Required............205 - 235 Volts / 3 Phase EQUIPPED WITH: Fanuc Oi-MC Control 15 HP Spindle Motor CAT-40 Spindle
Location: Detroit, MI
