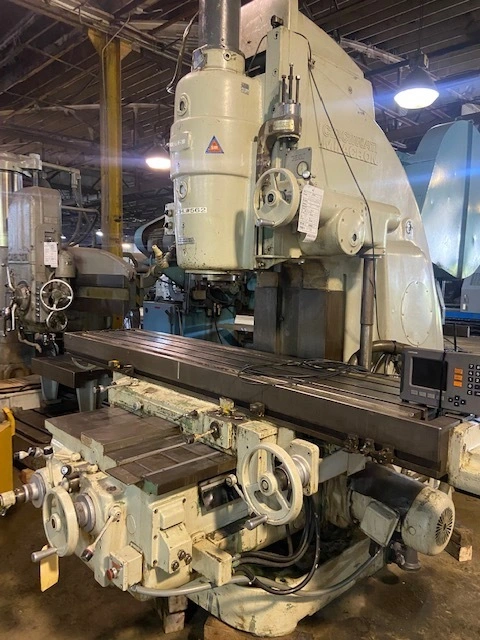

CINCINNATI 550-20 VERTICAL MILL

Description

Cincinnati #550-20 Vertical Mill
Model 550-20
S/N 310555V75-0004
AREA OF TABLE: 98" X 20"
SPINDLE SPEEDS :(24) 14 TO 1400 RPM
LONGITUDINAL AND CROSS FEEDS :(32) 3/8 TO 90 IMP
VERTICAL FEEDS: (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL : 50"
CROSS TRAVEL: 8"
VERTICAL TRAVEL OF HEAD: 8"
VERTICAL TRAVEL OF KNEE: 16"
DISTANCE SPINDLE TO TABLE: 0" MIN TO 22" MAX.
TAPER IN SPINDLE : #50 NS
RAPID TRAVERSE : 150 IMP
50 HORSEPOWER MAIN MOTOR
Complete with Power draw Bar
Readouts and a Large box of tooling for the spindle

Located in Dryden Mi. NOT UNDER POWER
