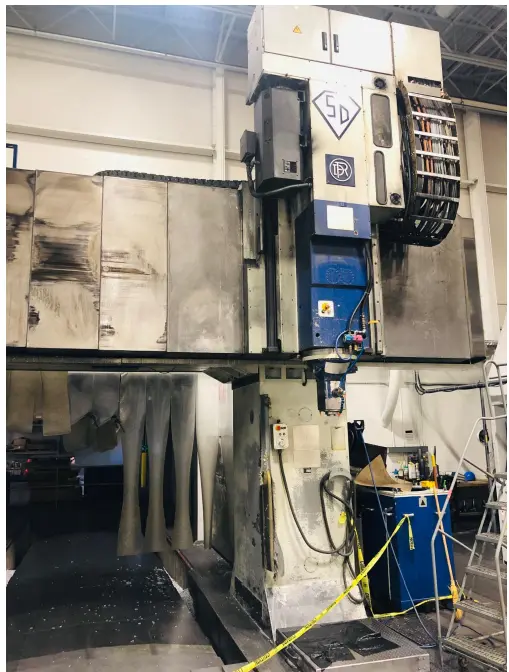

Droop & Rein Double Column 5 Axis Floor Type Gantry Mill
Have one to sell?
ConditionUsed
1 available
Droop & Rein FPVL 2500SL50/15kcn
Serial #06650
Year 1991
Control:
• Fidia C20 o Upgraded 2016
• Siemens S5 Table working area:
• 98” x 354” x (2489mm x 8991mm)
• Portal Passage 125.9” (3200mm)
Weight Capacity: • 66,138 lbs. (30.000 kg)
Travels: • X 366” (9296mm) • Y 145” (3683mm) • Z 71” (1803mm)
Head Attachments:
• Straight: Taper 50
• B/C Head : Taper 50
C: 0-360. Infinite Rotation B: +/- 95.0
Just rebuilt $40,000
Spindle Power: • 47 hp (35 Kw)
Droop & Rein FPVL 2500SL50/15kcn
Serial #06650
Year 1991
Control:
• Fidia C20 o Upgraded 2016
• Siemens S5 Table working area:
• 98” x 354” x (2489mm x 8991mm)
• Portal Passage 125.9” (3200mm)
Weight Capacity: • 66,138 lbs. (30.000 kg)
Travels: • X 366” (9296mm) • Y 145” (3683mm) • Z 71” (1803mm)
Head Attachments:
• Straight: Taper 50
• B/C Head: Taper 50
C: 0-360. Infinite Rotation B: +/- 95.0
Just rebuilt $40,000
Spindle Power: • 47 hp (35 Kw)
